TabLayout是design庫提供的控件,可以方便的使用指示器,功能類似ViewPagerIndicator.
使用非常方便,Android Studio只需要在gradle中引入即可使用 .

compile 'com.android.support:design:23.3.0'

TabLayout即可以單獨使用,也可以配合ViewPager來使用.

先來看看單獨使用的Demo,實現如下圖的效果:

android,TabLayout

代碼如下:

package blog.csdn.net.mchenys.tablayoudemo;import android.graphics.Color;import android.os.Bundle;import android.support.design.widget.TabLayout;import android.support.v7.app.AppCompatActivity;import android.view.Gravity;import android.view.ViewGroup;import android.widget.Toast;/** * Created by mChenys on 2016/5/28. */public class TabLayoutOnlyActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) {  super.onCreate(savedInstanceState);  //創建TabLayout  TabLayout tabLayout = new TabLayout(this);  tabLayout.setLayoutParams(new ViewGroup.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, 60));  //tab可滾動  tabLayout.setTabMode(TabLayout.MODE_SCROLLABLE);  //tab居中顯示  tabLayout.setTabGravity(TabLayout.GRAVITY_CENTER);  //tab的字體選擇器,默認黑色,選擇時紅色  tabLayout.setTabTextColors(Color.BLACK, Color.RED);  //tab的下劃線顏色,默認是粉紅色  tabLayout.setSelectedTabIndicatorColor(Color.BLUE);  for (int i = 0; i < 20; i++) {   //添加tab   tabLayout.addTab(tabLayout.newTab().setText("TAB" + i));  }  final Toast toast = Toast.makeText(this, "", Toast.LENGTH_SHORT);  toast.setGravity(Gravity.CENTER, 0, 0);  //設置tab的點擊監聽器  tabLayout.setOnTabSelectedListener(new TabLayout.OnTabSelectedListener() {   @Override   public void onTabSelected(TabLayout.Tab tab) {    toast.setText(tab.getPosition() + ":" + tab.getText());    toast.show();   }   @Override   public void onTabUnselected(TabLayout.Tab tab) {   }   @Override   public void onTabReselected(TabLayout.Tab tab) {   }  });  setContentView(tabLayout); }}

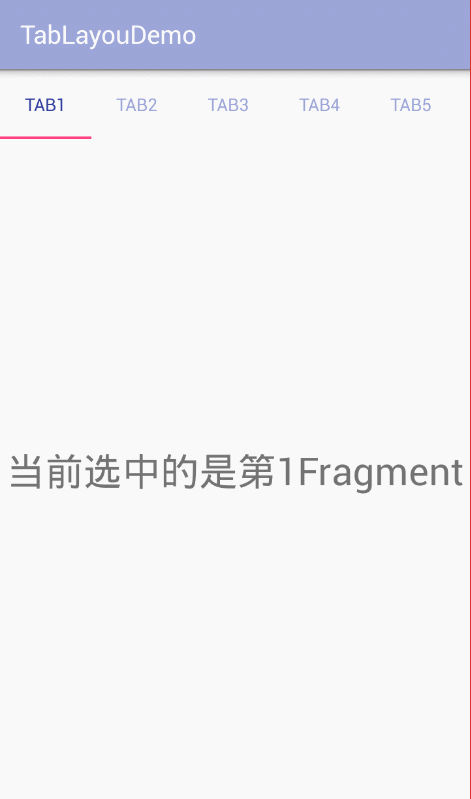

下面再來看看配合ViewPager的使用方式,實現如下效果圖:

android,TabLayout

布局文件如下:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <!-- app:tabGravity="center" 對齊方式，可選fill和center app:tabIndicatorColor="@color/colorAccent" 設置tab下劃線的顏色 app:tabMode="scrollable" scrollable是可以橫行滾動,fixed是指固定個數 app:tabSelectedTextColor="@color/colorPrimaryDark" 選擇tab的文本顏色 app:tabTextColor="@color/colorPrimary" 普通tab字體顏色 --> <android.support.design.widget.TabLayout  android:id="@+id/tl_tab"  android:layout_width="match_parent"  android:layout_height="55dp"  app:tabGravity="center"  app:tabIndicatorColor="@color/colorAccent"  app:tabMode="scrollable"  app:tabSelectedTextColor="@color/colorPrimaryDark"  app:tabTextColor="@color/colorPrimary" /> <android.support.v4.view.ViewPager  android:id="@+id/vp_pager"  android:layout_width="match_parent"  android:layout_height="match_parent" /></LinearLayout>

代碼如下:

package blog.csdn.net.mchenys.tablayoudemo;import android.os.Bundle;import android.support.design.widget.TabLayout;import android.support.v4.app.Fragment;import android.support.v4.app.FragmentPagerAdapter;import android.support.v4.view.ViewPager;import android.support.v7.app.AppCompatActivity;/** * Created by mChenys on 2016/5/28. */public class TabLayoutWithViewPagerActivity extends AppCompatActivity { String[] mTitle = new String[20]; String[] mData = new String[20]; TabLayout mTabLayout; ViewPager mViewPager; @Override protected void onCreate(Bundle savedInstanceState) {  super.onCreate(savedInstanceState);  setContentView(R.layout.activity_tab_view_pager);  initData();  initView(); } private void initData() {  for (int i = 0; i < 20; i++) {   mTitle[i] = "TAB" + (i + 1);   mData[i] = "當前選中的是第" + (i + 1) + "Fragment";  } } private void initView() {  mTabLayout = (TabLayout) findViewById(R.id.tl_tab);  mViewPager = (ViewPager) findViewById(R.id.vp_pager);  mViewPager.setAdapter(new FragmentPagerAdapter(getSupportFragmentManager()) {   //此方法用來顯示tab上的名字   @Override   public CharSequence getPageTitle(int position) {    return mTitle[position % mTitle.length];   }   @Override   public Fragment getItem(int position) {    //創建Fragment并返回    TabFragment fragment = new TabFragment();    fragment.setTitle(mData[position % mTitle.length]);    return fragment;   }   @Override   public int getCount() {    return mTitle.length;   }  });  //將ViewPager關聯到TabLayout上  mTabLayout.setupWithViewPager(mViewPager);//  設置監聽,注意:如果設置了setOnTabSelectedListener,則setupWithViewPager不會生效//  因為setupWithViewPager內部也是通過設置該監聽來觸發ViewPager的切換的.//  mTabLayout.setOnTabSelectedListener(new TabLayout.OnTabSelectedListener() {//   @Override//   public void onTabSelected(TabLayout.Tab tab) {//   }////   @Override//   public void onTabUnselected(TabLayout.Tab tab) {////   }////   @Override//   public void onTabReselected(TabLayout.Tab tab) {////   }//  });//  那我們如果真的需要監聽tab的點擊或者ViewPager的切換,則需要手動配置ViewPager的切換,例如:  mTabLayout.setOnTabSelectedListener(new TabLayout.OnTabSelectedListener() {   @Override   public void onTabSelected(TabLayout.Tab tab) {    //切換ViewPager    mViewPager.setCurrentItem(tab.getPosition());   }   @Override   public void onTabUnselected(TabLayout.Tab tab) {   }   @Override   public void onTabReselected(TabLayout.Tab tab) {   }  }); }}

TabFragment 代碼如下:

package blog.csdn.net.mchenys.tablayoudemo;import android.os.Bundle;import android.support.v4.app.Fragment;import android.util.TypedValue;import android.view.Gravity;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.TextView;/** * Created by mChenys on 2016/5/28. */public class TabFragment extends Fragment { private String mTitle; public void setTitle(String title) {  this.mTitle = title; } @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {  TextView textView = new TextView(getContext());  textView.setTextSize(TypedValue.COMPLEX_UNIT_SP,30);  textView.setGravity(Gravity.CENTER);  textView.setText(mTitle);  return textView; }}

擴展

1.TabLayout除了上面效果圖展示的文本以外,從源碼中發現它還可以支持Drawable,以及自定義View

public static final class Tab {  /**   * An invalid position for a tab.   *   * @see #getPosition()   */  public static final int INVALID_POSITION = -1;  private Object mTag;  private Drawable mIcon;  private CharSequence mText;  private CharSequence mContentDesc;  private int mPosition = INVALID_POSITION;  private View mCustomView;  private TabLayout mParent;  private TabView mView;  private Tab() {   // Private constructor  }

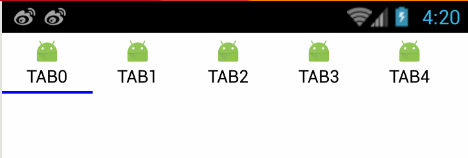

如下效果圖,就是通過添加自定義View實現的.

android,TabLayout

代碼如下,只需要修改TabLayout的addTab方法即可:

for (int i = 0; i < 20; i++) { //1.支持添加字符串文本tab  //tabLayout.addTab(tabLayout.newTab().setText("TAB" + i)); //2.支持添加圖片tab  //tabLayout.addTab(tabLayout.newTab().setIcon(R.mipmap.ic_launcher)); //3.支持添加View View tabView = View.inflate(TabLayoutOnlyActivity.this, R.layout.view_tab, null); ((TextView)tabView.findViewById(R.id.tv_title)).setText("TAB" + i); tabLayout.addTab(tabLayout.newTab().setCustomView(tabView));}

2.替換默認的tab選擇效果

如果你即想使用TabLayout,又想不用它的選中效果,例如我們不想要tab下面的那條下劃線作為指示效果.我們應該怎么處理呢?

要替換默認的選中效果,只能通過添加自定義View作為tab了.這樣就可以很方便的處理View的選中和未選中狀態了.

同時我們還要隱藏默認的下劃線,這個怎么處理呢,這里有個很好的建議.我們可以通過設置下滑線的顏色和tab的背景顏色一致,這樣就看不出來了.

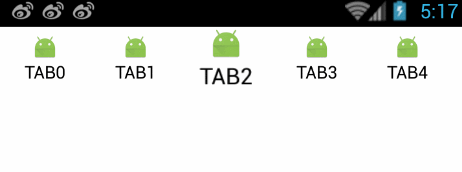

例如下面我們要實現選中tab的效果是將tab放大1.3倍,沒有選中則恢復原來比例.效果圖:

android,TabLayout

修改代碼如下:

package blog.csdn.net.mchenys.tablayoudemo;import android.graphics.Color;import android.os.Bundle;import android.support.design.widget.TabLayout;import android.support.v7.app.AppCompatActivity;import android.view.Gravity;import android.view.View;import android.view.ViewGroup;import android.widget.TextView;import android.widget.Toast;/** * Created by mChenys on 2016/5/28. */public class TabLayoutOnlyActivity extends AppCompatActivity { int initPosition; //默認位置 @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); //創建TabLayout final TabLayout tabLayout = new TabLayout(this); tabLayout.setLayoutParams(new ViewGroup.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, 100)); //tab可滾動 tabLayout.setTabMode(TabLayout.MODE_SCROLLABLE); //tab居中顯示 tabLayout.setTabGravity(TabLayout.GRAVITY_CENTER); //tab的字體選擇器,默認黑色,選擇時紅色 tabLayout.setTabTextColors(Color.BLACK, Color.RED); //tab的下劃線顏色,默認是粉紅色,如果要自定義選中效果,則可以將下劃線設置為和背景色一樣. tabLayout.setSelectedTabIndicatorColor(Color.WHITE); for (int i = 0; i < 20; i++) {  //1.支持添加字符串文本tab  //tabLayout.addTab(tabLayout.newTab().setText("TAB" + i));  //2.支持添加圖片tab  //tabLayout.addTab(tabLayout.newTab().setIcon(R.mipmap.ic_launcher));  //3.支持添加View  View tabView = View.inflate(TabLayoutOnlyActivity.this, R.layout.view_tab, null);  ((TextView) tabView.findViewById(R.id.tv_title)).setText("TAB" + i);  tabLayout.addTab(tabLayout.newTab().setCustomView(tabView)); } //設置tab的點擊監聽器 tabLayout.setOnTabSelectedListener(new TabLayout.OnTabSelectedListener() {  @Override  public void onTabSelected(TabLayout.Tab tab) {  //將默認位置選中為false  isSelected(tabLayout.getTabAt(initPosition), false);  //選中當前位置  isSelected(tab, true);  }  @Override  public void onTabUnselected(TabLayout.Tab tab) {  //tab未選中  isSelected(tab, false);  }  @Override  public void onTabReselected(TabLayout.Tab tab) {  //tab重新選中  isSelected(tab,true);  } }); //進來默認選中位置第3個item initPosition = 2; isSelected(tabLayout.getTabAt(initPosition), true); setContentView(tabLayout); } /** * 設置選中的tab是否帶縮放效果 * @param tab * @param isSelected */ private void isSelected(TabLayout.Tab tab, boolean isSelected) { View view = tab.getCustomView(); if (null != view) {  view.setScaleX(isSelected ? 1.3f : 1.0f);  view.setScaleY(isSelected ? 1.3f : 1.0f); } }}
