Android中PathMeasure仿支付寶支付動畫

2019-10-22 18:30:37

字體：大中小

供稿：網友

前言

在 Android 自定義 View 中，Path 可能用的比較多，PathMeasure 可能用的比較少，就我而言，以前也沒有使用過 PathMeasure 這個 api,看到別人用 PathMeasure 和 ValueAnimator 結合在一起完成了很好的動畫效果，于是我也學習下 PathMeasure ，此處記錄下。

PathMeasure

構造器：

Android,PathMeasure,支付寶

forceClosed 含義：

// 創建一個 Path 對象path = new Path();path.moveTo(20, 20);path.lineTo(200, 20);path.lineTo(200, 400);

在onDraw(Canvas canvas) 中繪制 path

@Override protected void onDraw(Canvas canvas) {  destPath.reset();  destPath.lineTo(0, 0);  pathMeasure.setPath(path, true);  Log.e("debug", "PathMeasure.getLength() = " + pathMeasure.getLength());  pathMeasure.getSegment(0, pathMeasure.getLength() * curValue, destPath, true);canvas.drawPath(destPath, paint); // 繪制線段路徑 }

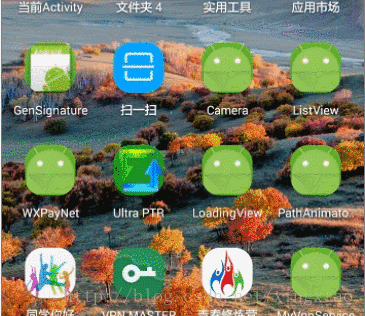

當 pathMeasure.setPath(path,false) 時：

Android,PathMeasure,支付寶

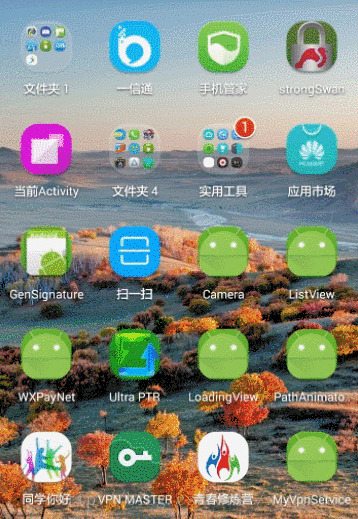

當 pathMeasure.setPath(path,true) 時：

Android,PathMeasure,支付寶

可以看到：當 forceClosed = true 時， path 進行了閉合，相應的 path 長度也變長了，即算上了斜邊的長度。

仿支付寶支付動畫 View - LoadingView

效果：

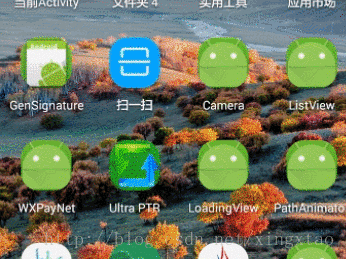

Android,PathMeasure,支付寶

思路：

繪制對號，叉號，主要是通過 ValueAnimator 結合 getSegment() 不斷繪制新的弧形段，其中，叉號由兩個 path 組成，在第一個 path 繪制完成時，需要調用 pathMeasure.nextContour() 跳轉到另一個 path。

getSegment() 將獲取的片段填充到 destPath 中，在 Android 4.4 及以下版本中，不能繪制，需要調用 destPath.reset(),destPath.line(0,0)

LoadingView 完整代碼：

public class LoadingView extends View {  private final int DEFAULT_COLOR = Color.BLACK; // 默認圓弧顏色  private final int DEFAULT_STROKE_WIDTH = dp2Px(2); // 默認圓弧寬度  private final boolean DEFAULT_IS_SHOW_RESULT = false; // 默認不顯示加載結果  private final int DEFAULT_VIEW_WIDTH = dp2Px(50); // 控件默認寬度  private final int DEFAULT_VIEW_HEIGHT = dp2Px(50); // 控件默認高度  private int color; // 圓弧顏色  private int strokeWidth;  // 圓弧寬度  private boolean isShowResult;  // 是否顯示加載結果狀態  private Paint paint; // 畫筆  private int mWidth; // 控件寬度  private int mHeight; // 控件高度  private int radius;  // 圓弧所在圓的半徑  private int halfStrokeWidth; // 畫筆寬度的一半  private int rotateDelta = 4;  private int curAngle = 0;  private int minAngle = -90;  private int startAngle = -90; // 上方頂點  private int endAngle = 0;  private RectF rectF;  private StateEnum stateEnum = StateEnum.LOADING;  private Path successPath;  private Path rightFailPath;  private Path leftFailPath;  private ValueAnimator successAnimator;  private ValueAnimator rightFailAnimator;  private ValueAnimator leftFailAnimator;  private PathMeasure pathMeasure;  private float successValue;  private float rightFailValue;  private float leftFailValue;  private Path destPath;  private AnimatorSet animatorSet;  public LoadingView(Context context) {    this(context, null);  }  public LoadingView(Context context, AttributeSet attrs) {    super(context, attrs);    init(context, attrs);  }  private void init(Context context, AttributeSet attrs) {    TypedArray typedArray = null;    try {      typedArray = context.obtainStyledAttributes(attrs, R.styleable.LoadingView);      color = typedArray.getColor(R.styleable.LoadingView_color, DEFAULT_COLOR);      strokeWidth = (int) typedArray.getDimension(R.styleable.LoadingView_storkeWidth, DEFAULT_STROKE_WIDTH);      isShowResult = typedArray.getBoolean(R.styleable.LoadingView_isShowResult, DEFAULT_IS_SHOW_RESULT);    } catch (Exception e) {      e.printStackTrace();    } finally {      if (typedArray != null) {        typedArray.recycle();      }    }    paint = createPaint(color, strokeWidth, Paint.Style.STROKE);  }  @Override  protected void onSizeChanged(int w, int h, int oldw, int oldh) {    super.onSizeChanged(w, h, oldw, oldh);    mWidth = w;    mHeight = h;    Log.i("debug", "getMeasureWidth() = " + getMeasuredWidth());    Log.i("debug", "getMeasureHeight() = " + getMeasuredHeight());    radius = Math.min(mWidth, mHeight) / 2;    halfStrokeWidth = strokeWidth / 2;    rectF = new RectF(halfStrokeWidth - radius, halfStrokeWidth - radius,        radius - halfStrokeWidth, radius - halfStrokeWidth);    // success path    successPath = new Path();    successPath.moveTo(-radius * 2 / 3f, 0f);    successPath.lineTo(-radius / 8f, radius / 2f);    successPath.lineTo(radius / 2, -radius / 3);    // fail path ,right top to left bottom    rightFailPath = new Path();    rightFailPath.moveTo(radius / 3f, -radius / 3f);    rightFailPath.lineTo(-radius / 3f, radius / 3f);    // fail path, left top to right bottom    leftFailPath = new Path();    leftFailPath.moveTo(-radius / 3f, -radius / 3f);    leftFailPath.lineTo(radius / 3f, radius / 3f);    pathMeasure = new PathMeasure();    destPath = new Path();    initSuccessAnimator();    initFailAnimator();  }  private void initSuccessAnimator() {//    pathMeasure.setPath(successPath, false);    successAnimator = ValueAnimator.ofFloat(0, 1f);    successAnimator.setDuration(1000);    successAnimator.setInterpolator(new LinearInterpolator());    successAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {      @Override      public void onAnimationUpdate(ValueAnimator animation) {        successValue = (float) animation.getAnimatedValue();        invalidate();      }    });  }  private void initFailAnimator() {//    pathMeasure.setPath(rightFailPath, false);    rightFailAnimator = ValueAnimator.ofFloat(0, 1f);    rightFailAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {      @Override      public void onAnimationUpdate(ValueAnimator animation) {        rightFailValue = (float) animation.getAnimatedValue();        invalidate();      }    });//    pathMeasure.setPath(leftFailPath, false);    leftFailAnimator = ValueAnimator.ofFloat(0, 1f);    leftFailAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {      @Override      public void onAnimationUpdate(ValueAnimator animation) {        leftFailValue = (float) animation.getAnimatedValue();        invalidate();      }    });    animatorSet = new AnimatorSet();    animatorSet.play(leftFailAnimator).after(rightFailAnimator);    animatorSet.setDuration(500);    animatorSet.setInterpolator(new LinearInterpolator());  }  /**   * 測量控件的寬高，當測量模式不是精確模式時，設置默認寬高   *   * @param widthMeasureSpec   * @param heightMeasureSpec   */  @Override  protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {    int widthMode = MeasureSpec.getMode(widthMeasureSpec);    int heightMode = MeasureSpec.getMode(heightMeasureSpec);    if (widthMode == MeasureSpec.AT_MOST || widthMode == MeasureSpec.UNSPECIFIED) {      widthMeasureSpec = MeasureSpec.makeMeasureSpec(DEFAULT_VIEW_WIDTH, MeasureSpec.EXACTLY);    }    if (heightMode == MeasureSpec.AT_MOST || heightMode == MeasureSpec.UNSPECIFIED) {      heightMeasureSpec = MeasureSpec.makeMeasureSpec(DEFAULT_VIEW_HEIGHT, MeasureSpec.EXACTLY);    }    super.onMeasure(widthMeasureSpec, heightMeasureSpec);  }  @Override  protected void onDraw(Canvas canvas) {    canvas.save();    canvas.translate(mWidth / 2, mHeight / 2);    destPath.reset();    destPath.lineTo(0, 0);  // destPath    if (stateEnum == StateEnum.LOADING) {      if (endAngle >= 300 || startAngle > minAngle) {        startAngle += 6;        if (endAngle > 20) {          endAngle -= 6;        }      }      if (startAngle > minAngle + 300) {        minAngle = startAngle;        endAngle = 20;      }      canvas.rotate(curAngle += rotateDelta, 0, 0);//旋轉rotateDelta=4的弧長      canvas.drawArc(rectF, startAngle, endAngle, false, paint);      // endAngle += 6 放在 drawArc()后面，是防止剛進入時，突兀的顯示了一段圓弧      if (startAngle == minAngle) {        endAngle += 6;      }      invalidate();    }    if (isShowResult) {      if (stateEnum == StateEnum.LOAD_SUCCESS) {        pathMeasure.setPath(successPath, false);        canvas.drawCircle(0, 0, radius - halfStrokeWidth, paint);        pathMeasure.getSegment(0, successValue * pathMeasure.getLength(), destPath, true);        canvas.drawPath(destPath, paint);      } else if (stateEnum == StateEnum.LOAD_FAILED) {        canvas.drawCircle(0, 0, radius - halfStrokeWidth, paint);        pathMeasure.setPath(rightFailPath, false);        pathMeasure.getSegment(0, rightFailValue * pathMeasure.getLength(), destPath, true);        if (rightFailValue == 1) {          pathMeasure.setPath(leftFailPath, false);          pathMeasure.nextContour();          pathMeasure.getSegment(0, leftFailValue * pathMeasure.getLength(), destPath, true);        }        canvas.drawPath(destPath, paint);      }    }    canvas.restore();  }  public void updateState(StateEnum stateEnum) {    this.stateEnum = stateEnum;    if (stateEnum == StateEnum.LOAD_SUCCESS) {      successAnimator.start();    } else if (stateEnum == StateEnum.LOAD_FAILED) {      animatorSet.start();    }  }  public enum StateEnum {    LOADING, // 正在加載    LOAD_SUCCESS,  // 加載成功，顯示對號    LOAD_FAILED   // 加載失敗，顯示叉號  }  /**   * 創建畫筆   *   * @param color    畫筆顏色   * @param strokeWidth 畫筆寬度   * @param style    畫筆樣式   * @return   */  private Paint createPaint(int color, int strokeWidth, Paint.Style style) {    Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG);    paint.setStrokeCap(Paint.Cap.ROUND);    paint.setStrokeJoin(Paint.Join.ROUND);    paint.setColor(color);    paint.setStrokeWidth(strokeWidth);    paint.setStyle(style);    return paint;  }  /**   * dp 轉換成 px   *   * @param dpValue   * @return   */  private int dp2Px(int dpValue) {    return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dpValue, getResources().getDisplayMetrics());  }}

github : https://github.com/xing16/LoadingView
