本文實例為大家分享了Android九宮格圖片展示的具體代碼，供大家參考，具體內容如下
首先來看一下我們要做成的而效果：
主頁面要顯示一個viewpager自動輪播+小圓點聯動的效果 ：
廢話不多說，直接上代碼：
布局文件：
activity_main.xml：
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" > <RelativeLayout android:layout_width="match_parent" android:layout_height="200dp" > <android.support.v4.view.ViewPager android:id="@+id/main_vp" android:layout_width="match_parent" android:layout_height="200dp" > </android.support.v4.view.ViewPager> <LinearLayout android:id="@+id/ll_doc" android:layout_width="match_parent" android:layout_height="40dp" android:layout_alignParentBottom="true" android:gravity="center" android:orientation="horizontal" > </LinearLayout> </RelativeLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="100dp" > </LinearLayout> <LinearLayout android:layout_width="match_parent" android:layout_height="80dp" > </LinearLayout> <GridView android:id="@+id/main_gv" android:layout_width="match_parent" android:layout_height="match_parent" android:numColumns="2" > </GridView></LinearLayout>
menu下的main.xml：
<menu xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" tools:context="com.example.monthextwo.MainActivity" > <item android:id="@+id/action_settings" android:orderInCategory="100" android:showAsAction="never" android:title="@string/action_settings"/></menu>

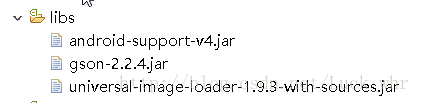

接下來看一下要用到的架包文件：

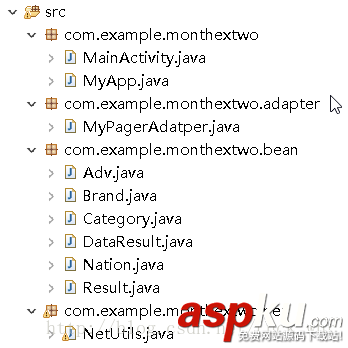

最后是Java文件：
首先是com.example.monthextwo包中的MainActivity.java：
public class MainActivity extends Activity { ViewPager vp; DataResult data; List<ImageView> list; List<ImageView> list_doc; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); initData(); } private void initView() { vp = (ViewPager) findViewById(R.id.main_vp); } public void initDoc(){ LinearLayout ll_dco = (LinearLayout) findViewById(R.id.ll_doc); list_doc = new ArrayList<ImageView>(); if(data != null && data.getResult().getAdvs().size() > 0){ for (int i = 0; i < data.getResult().getAdvs().size(); i++) { ImageView iv = new ImageView(this); LayoutParams params = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT); params.rightMargin = 10; iv.setLayoutParams(params); if(i == 0){ iv.setBackgroundResource(R.drawable.doc_check); }else{ iv.setBackgroundResource(R.drawable.doc_uncheck); } ll_dco.addView(iv); list_doc.add(iv); } } } private void initData() { new AsyncTask<String, String, String>(){ @Override protected String doInBackground(String... params) { String json = NetUtils.getNetData("http://www.babybuy100.com/API/getShopOverview.ashx"); Gson gson = new Gson(); data = gson.fromJson(json, DataResult.class); Log.i("=================", data.toString()); return null; } @Override protected void onPostExecute(String result) { initVP(); super.onPostExecute(result); } }.execute(); } protected void initVP() { list = new ArrayList<ImageView>(); if(data != null && data.getResult().getAdvs().size() > 0){ for (int i = 0; i < data.getResult().getAdvs().size(); i++) { ImageView iv = new ImageView(this); iv.setScaleType(ScaleType.FIT_XY); ImageLoader.getInstance().displayImage(data.getResult().getAdvs().get(i).getPic(), iv); list.add(iv); } //創建適配器 MyPagerAdatper myPagerAdatper = new MyPagerAdatper(list); vp.setAdapter(myPagerAdatper); initDoc(); vp.addOnPageChangeListener(new OnPageChangeListener() { @Override public void onPageSelected(int arg0) { int index = arg0 % list_doc.size(); for (int i = 0; i < list_doc.size(); i++) { list_doc.get(i).setBackgroundResource(R.drawable.doc_uncheck); } list_doc.get(index).setBackgroundResource(R.drawable.doc_check); } @Override public void onPageScrolled(int arg0, float arg1, int arg2) { // TODO Auto-generated method stub } @Override public void onPageScrollStateChanged(int arg0) { // TODO Auto-generated method stub } }); } }}MyApp.xml：
public class MyApp extends Application{ @Override public void onCreate() { // TODO Auto-generated method stub super.onCreate(); ImageLoaderConfiguration configuration = ImageLoaderConfiguration.createDefault(this); ImageLoader.getInstance().init(configuration); }}com.example.monthextwo.adapter包下的MyPagerAdatper.java：
public class MyPagerAdatper extends PagerAdapter{ List<ImageView> list; public MyPagerAdatper(List<ImageView> list) { super(); this.list = list; } @Override public int getCount() { if(list != null){ return Integer.MAX_VALUE; } return 0; } @Override public boolean isViewFromObject(View arg0, Object arg1) { // TODO Auto-generated method stub return arg0 == arg1; } @Override public void destroyItem(ViewGroup container, int position, Object object) { // TODO Auto-generated method stub container.removeView((View) object); } @Override public Object instantiateItem(ViewGroup container, int position) { int index = position % list.size(); container.addView(list.get(index)); return list.get(index); }}com.example.monthextwo.bean包下的Adv.java：
public class Adv { String pic; public String getPic() { return pic; } public void setPic(String pic) { this.pic = pic; } @Override public String toString() { return "Avd [pic=" + pic + "]"; }}Brand.java： *這是個空文件*
public class Category { }
Category.java： *這是個空文件*
public class Category { }
DataResult.java：
public class DataResult { Result result; public Result getResult() { return result; } public void setResult(Result result) { this.result = result; } @Override public String toString() { return "DataResult [result=" + result + "]"; }}Nation.java： *這是個空文件*
public class Nation { }
Result.java：
public class Result { List<Adv> advs = new ArrayList<Adv>(); List<Brand> brands = new ArrayList<Brand>(); List<Category> categorys = new ArrayList<Category>(); List<Nation> nations = new ArrayList<Nation>(); public List<Adv> getAdvs() { return advs; } public void setAdvs(List<Adv> advs) { this.advs = advs; } public List<Brand> getBrands() { return brands; } public void setBrands(List<Brand> brands) { this.brands = brands; } public List<Category> getCategorys() { return categorys; } public void setCategorys(List<Category> categorys) { this.categorys = categorys; } public List<Nation> getNations() { return nations; } public void setNations(List<Nation> nations) { this.nations = nations; } @Override public String toString() { return "Result [avds=" + advs + ", brands=" + brands + ", categorys=" + categorys + ", nations=" + nations + "]"; }}com.example.monthextwo.net包下的NetUtils.java：
public class NetUtils { public static String getNetData(String path){ String json = ""; try { URL url = new URL(path); HttpURLConnection conn = (HttpURLConnection) url.openConnection(); conn.setRequestMethod("GET"); int code = conn.getResponseCode(); if(code == 200){ InputStream is = conn.getInputStream(); ByteArrayOutputStream bos = new ByteArrayOutputStream(); int len = -1; byte[] buff = new byte[1024]; while((len = is.read(buff)) != -1){ bos.write(buff, 0, len); } json = new String(bos.toByteArray()); } } catch (Exception e) { // TODO Auto-generated catch block e.printStackTrace(); } return json; }}以上就是全部的代碼了，新手練習。
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持VEVB武林網。
