前言
經常要用到圖表統計數據，在WEB開發中圖表繪制是一件簡單的事情，因?yàn)橛斜容^多的開源方案。但在Android中開源方案并不多。但目前github上有多個關于圖表的框架，比如MPAndroidChart很好，但是很大，沒必要因?yàn)橐粋€(gè)小的圖標讓工程項目擴大很多，另外有些輕量級的框架，但是個人感覺都很難滿足自己的需求，再者就算很好的框架，那也是別人的，只有自己動手寫起來，了解前前后后的坑，自己才能成長，而且在寫的過程，我們能發現更多的細節，比如繪制的時候內存分配的問題，Canvas直接繪制和通過Bitmap繪制等等，所以這篇文章的目的:
1.是給大家提供自定義view繪制的思路
2.滑動自定義view的部分區域怎么實現
3.path動畫繪制的實現
4.熟悉canvas的api，總之能直接動手了，那就自定義view就通關了，所以就寫這篇文章主要是鼓勵大家多去實現。

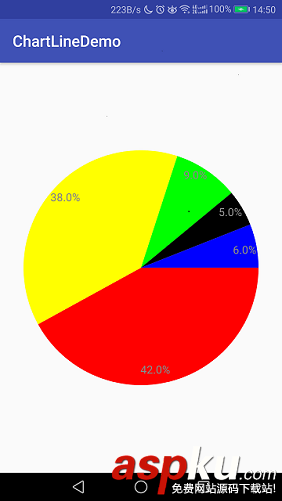

效果圖
線性圖表實現的思路：
線性表是最基本、最簡單、也是最常用的一種數據結構。線性表中數據元素之間的關系是一對一的關系，即除了第一個和最后一個數據元素之外，其它數據元素都是首尾相接的，注意，這句話只適用大部分線性表，而不是全部。
由于屏幕的寬度有限，所以我們一屏經過計算，最好顯示的7個點，所以我們首先需要對我們的view寬度進行計算，首先拿到屏幕的寬度，然后再進行/7，得到每個間隔的寬度，然后乘以我們x的坐標點的個數，其中的onMeasure的方法：
int widthParentMeasureMode = MeasureSpec.getMode(widthMeasureSpec); int widthParentMeasureSize = MeasureSpec.getSize(widthMeasureSpec); int heightParentMeasureMode = MeasureSpec.getMode(heightMeasureSpec); int heightParentMeasureSize = MeasureSpec.getSize(heightMeasureSpec); int resultWidthSize = 0; int resultHeightSize = 0; int resultWidthMode = MeasureSpec.EXACTLY;//用來對childView進行計算的 int resultHeightMode = MeasureSpec.EXACTLY; int paddingWidth = getPaddingLeft() + getPaddingRight(); int paddingHeight = getPaddingTop() + getPaddingBottom(); ViewGroup.LayoutParams thisLp = getLayoutParams(); switch (widthParentMeasureMode) { //父類不加限制給子類 case MeasureSpec.UNSPECIFIED: //這個代表在布局寫死了寬度 if (thisLp.width > 0) { resultWidthSize = thisLp.width; resultWidthMode = MeasureSpec.EXACTLY; } else { resultWidthSize = (int) (getYMaxTextWidth() + mXinterval * mXdots.length); resultWidthMode = MeasureSpec.UNSPECIFIED; } break; case MeasureSpec.AT_MOST: //這個代表在布局寫死了寬度 if (thisLp.width > 0) { resultWidthSize = thisLp.width; resultWidthMode = MeasureSpec.EXACTLY; } else if (thisLp.width == ViewGroup.LayoutParams.MATCH_PARENT) { resultWidthSize = Math.max(0, widthParentMeasureSize - paddingWidth); resultWidthMode = MeasureSpec.AT_MOST; } else if (thisLp.width == ViewGroup.LayoutParams.WRAP_CONTENT) { resultWidthSize = (int) (getYMaxTextWidth() + mXinterval * mXdots.length); resultWidthMode = MeasureSpec.AT_MOST; } break; case MeasureSpec.EXACTLY: //這個代表在布局寫死了寬度 if (thisLp.width > 0) { resultWidthSize = Math.min(widthParentMeasureSize, thisLp.width); resultWidthMode = MeasureSpec.EXACTLY; } else if (thisLp.width == ViewGroup.LayoutParams.MATCH_PARENT) { resultWidthSize = widthParentMeasureSize; resultWidthMode = MeasureSpec.EXACTLY; } else if (thisLp.width == ViewGroup.LayoutParams.WRAP_CONTENT) { resultWidthSize = (int) (getYMaxTextWidth() + mXinterval * mXdots.length); resultWidthMode = MeasureSpec.AT_MOST; } break; } switch (heightParentMeasureMode) { //父view不加限制 case MeasureSpec.UNSPECIFIED: //這個代表在布局寫死了寬度 if (thisLp.height > 0) { resultHeightSize = thisLp.height; resultHeightMode = MeasureSpec.EXACTLY; } else { resultHeightSize = (int) (getYMaxTextHeight() + mYvisibleNum * mYinterval + getXMaxTextHeight()); resultHeightMode = MeasureSpec.UNSPECIFIED; } break; case MeasureSpec.AT_MOST: if (thisLp.height > 0) { resultHeightSize = heightParentMeasureSize; resultHeightMode = MeasureSpec.EXACTLY; } else if (thisLp.height == ViewGroup.LayoutParams.MATCH_PARENT) { resultHeightSize = Math.max(0, heightParentMeasureSize - paddingHeight); resultHeightMode = MeasureSpec.AT_MOST; } else if (thisLp.height == ViewGroup.LayoutParams.WRAP_CONTENT) { resultHeightSize = (int) (getYMaxTextHeight() + mYvisibleNum * mYinterval + getXMaxTextHeight()); resultHeightMode = MeasureSpec.UNSPECIFIED; } break; case MeasureSpec.EXACTLY: //這個代表在布局寫死了寬度 if (thisLp.height > 0) { resultHeightSize = Math.min(heightParentMeasureSize, getMeasuredWidth()); resultHeightMode = MeasureSpec.EXACTLY; } else if (thisLp.width == ViewGroup.LayoutParams.MATCH_PARENT) { resultHeightSize = heightParentMeasureSize; resultHeightMode = MeasureSpec.EXACTLY; } else if (thisLp.width == ViewGroup.LayoutParams.WRAP_CONTENT) { resultHeightSize = (int) (getYMaxTextHeight() + mYvisibleNum * mYinterval + getXMaxTextHeight()); resultHeightMode = MeasureSpec.AT_MOST; } break; } setMeasuredDimension(MeasureSpec.makeMeasureSpec(resultWidthSize, resultWidthMode), MeasureSpec.makeMeasureSpec(resultHeightSize, resultHeightMode)); 設置好了尺寸，我們就可以繪制界面，這里我們onDraw的時候，就依次繪制橫線和豎線，在繪制橫線的時候，將Y坐標的數字一起繪制上去，同理繪制豎線的時候，把x坐標的數字繪制上去，折線的畫根據數字計算出坐標點，然后創建一個path，首先moveTo(firstX,firstY) ,然后lineTo下面的點就可以了，最后繪制上path，然而這樣的話，我們?cè)诨瑒?dòng)的時候，會發現這個view都會跟著一起滾動了，那么我們?cè)鯓硬拍軐?shí)現view的部分pinned呢？在這個時候，我們就需要先創建一個bitmap，將需要滑動的部分繪制到這個bitmap上去，然后bitmap在繪制到這個canvas上的時候，保持固定的位置就行了，好了再說就懵逼了，還是上代碼吧：
float tempTableLeftPadding = getYMaxTextWidth(); if (mBitmap == null || mYNumCanvas == null) { mBitmap = Bitmap.createBitmap((int) (getMeasuredWidth() - getYMaxTextWidth()), getMeasuredHeight(), Bitmap.Config.ARGB_8888); mYNumCanvas = new Canvas(mBitmap); } mYNumCanvas.drawColor(Color.TRANSPARENT, PorterDuff.Mode.CLEAR); mYNumCanvas.translate(mScrollPosX,0);//這段代碼就是來實現滑動的操作 //繪制橫線 for (int y = 0, size = mYdots.length; y < size; y++) { String tempText = String.valueOf(mYdots[mYdots.length - 1 - y]); mYNumCanvas.drawLine(0, (float) (mYinterval * y), (float) (mXdots.length * mXinterval), (float) (mYinterval * y), mXlinePaint); canvas.drawText(tempText, getYMaxTextWidth() - mYNumPaint.measureText(tempText), getYMaxTextHeight() + (float) (mYinterval * y), mYNumPaint); } //繪制豎線 for (int x = 0, size = mXdots.length; x <= size; x++) { mYNumCanvas.drawLine((float) (mXinterval * x), 0, (float) (mXinterval * x), (float) (mYinterval * mYvisibleNum), mXlinePaint); if (x >= 1) { String tempText = mXdots[x - 1]; mYNumCanvas.drawText(tempText, (float) (mXinterval * x) - mYNumPaint.measureText(tempText) / 2, (float) (mYvisibleNum * mYinterval + getYMaxTextHeight()), mYNumPaint); } } if (isAnimationOpen)//是否需要開啟動畫繪制，這個后面會解釋實現方式 mYNumCanvas.drawPath(mLineDrawPath, mLinePaint); else mYNumCanvas.drawPath(mLinePath, mLinePaint); canvas.drawBitmap(mBitmap, tempTableLeftPadding, getYMaxTextHeight() / 2, null);上面的mScrollPosX是根據手勢監聽類GestureDetector來獲取的：
@Overridepublic boolean onTouchEvent(MotionEvent event) { if (!isAnimationOpen || isDrawOver) return mGestureDetector.onTouchEvent(event); return super.onTouchEvent(event);}然而繪制了，我們感覺還缺少了什么，嗯，沒錯就是動畫效果，這里我們用到通過的path繪制實現動畫的方案，就是先通過PathMeasure得到path的長度，然后根據動畫時間，通過ValueAnimator計算它在某個時刻的坐標，然后重新進行繪制path路徑：
private void startPathAnim(long duration) { ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, mLineLength); valueAnimator.setDuration(duration); valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() { @Override public void onAnimationUpdate(ValueAnimator animation) { float value = (Float) animation.getAnimatedValue(); // 獲取當前點坐標封裝到mCurrentPosition mPathMeasure.getPosTan(value, mCurrentPosition, null); mLineDrawPath.lineTo(mCurrentPosition[0], mCurrentPosition[1]); invalidate(); } }); valueAnimator.start();}百分比圓形圖表實現
其實這個的實現，相比上一個少了很多，大多是集中在onDraw方法里面，關鍵點是在百分比的數字，怎么橫向顯示在扇形區域，這里我就主要這個計算規則提出來：
private void drawText(Canvas canvas, float sweepAngle, float startAngle, ArcVo temp) { float middleAngle; middleAngle = startAngle + sweepAngle / 2; float startX; float startY; float endX; float endY; String drawText = temp.getPercentInCircle() * 100 + "%"; if (middleAngle <= 90) { //在第四象限 double angle = middleAngle; angle = Math.toRadians(angle); startY = endY = (float) (Math.sin(angle) * mRaduis + mRaduis); endX = (float) (mRaduis + Math.cos(angle) * mRaduis); startX = endX - UiUtils.getTextWidth(drawText, mTextPaint); } else if (middleAngle <= 180) { //在第三象限 double angle = 180 - middleAngle; angle = Math.toRadians(angle); startY = endY = (float) (Math.sin(angle) * mRaduis + mRaduis); startX = (float) (mRaduis - Math.cos(angle) * mRaduis); endX = startX + UiUtils.getTextWidth(drawText, mTextPaint); } else if (middleAngle <= 270) { //在第二象限 double angle = 270 - middleAngle; angle = Math.toRadians(angle); startY = endY = (float) (mRaduis - Math.cos(angle) * mRaduis); startX = (float) (mRaduis - Math.sin(angle) * mRaduis); endX = startX + UiUtils.getTextWidth(drawText, mTextPaint); } else { //在第一象限 double angle = 360 - middleAngle; angle = Math.toRadians(angle); startY = endY = (float) (mRaduis - Math.sin(angle) * mRaduis); endX = (float) (mRaduis + Math.cos(angle) * mRaduis); startX = endX - UiUtils.getTextWidth(drawText, mTextPaint); } mTextPath.reset(); mTextPath.moveTo(startX, startY); mTextPath.lineTo(endX, endY); if (middleAngle > 180) { canvas.drawTextOnPath(drawText, mTextPath, 0, UiUtils.getTextHeight(drawText, mTextPaint), mTextPaint); } else { canvas.drawTextOnPath(drawText, mTextPath, 0, -UiUtils.getTextHeight(drawText, mTextPaint), mTextPaint); }} @Overrideprotected void onDraw(Canvas canvas) { if (!canDraw()) return; float sweepAngle; float startAngle = 0; for (int i = 0, size = mDisArcList.size(); i < size; i++) { ArcVo temp = mDisArcList.get(i); mArcPaint.setColor(temp.getScanColor()); sweepAngle = temp.getPercentInCircle() * 360; canvas.drawArc(mDrawCircleRect, startAngle, sweepAngle, true, mArcPaint); drawText(canvas, sweepAngle, startAngle, temp); startAngle = startAngle + sweepAngle; }}使用方式：
如果你覺得你們的項目正好要用到類似的圖標，在項目的gradle文件中，增加compile 'wellijohn.org.simplelinechart:linechart:0.0.2'具體的方法，歡迎移步到github上去看，已經封裝成庫上傳至jcenter，上面有具體的使用方法(圖表地址)，目前暴露的方法不多，可以留言增加
github地址：https://github.com/WelliJohn/LineChart
總結
以上就是這篇文章的全部?jī)?nèi)容了，希望本文的內容對大家的學習或者工作具有一定的參考學習價值，如果有疑問大家可以留言交流，謝謝大家對VEVB武林網的支持。
