本文實例為大家分享了Android仿手機QQ圖案解鎖的具體代碼，供大家參考，具體內容如下
ps:請不要再問我，為什么導入之后會亂碼了。
其實，代碼基本上都是從原生系統中提取的：LockPatternView、加密工具類，以及解鎖邏輯等，我只是稍作修改，大家都知道，原生系統界面比較丑陋，因此，我特意把QQ的apk解壓了，從中拿了幾張圖案解鎖的圖片，一個簡單的例子就這樣誕生了。

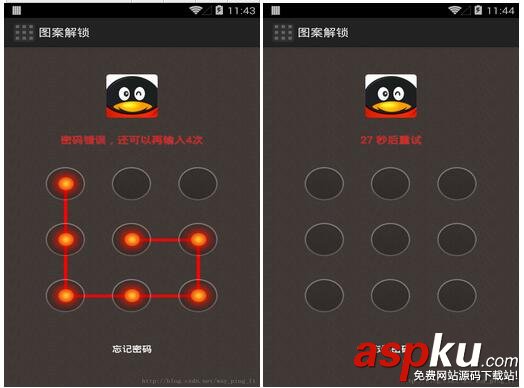

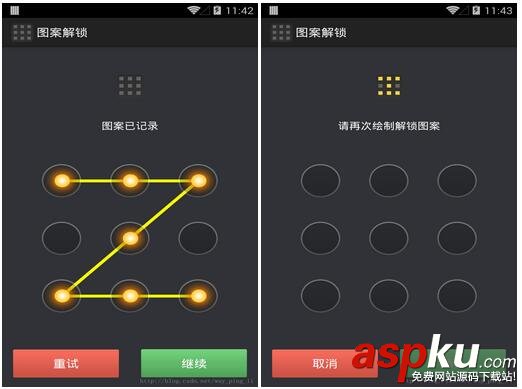

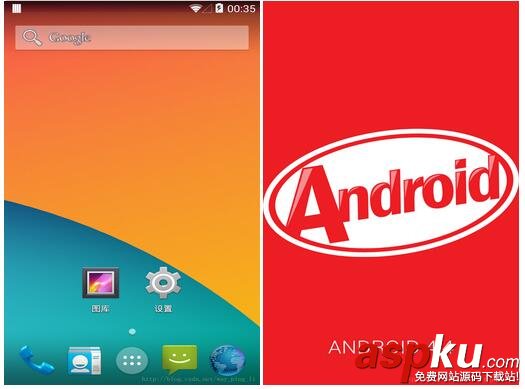

好了，廢話不多說，我們來看看效果(最后兩張是最新4.4系統，炫一下，呵呵)：
1.最關健的就是那個自定義九宮格View，代碼來自framework下：LockPatternView，原生系統用的圖片資源比較多，好像有7、8張吧，而且繪制的比較復雜，我找尋半天，眼睛都找瞎了，發現解壓的QQ里面就3張圖片，一個圈圈，兩個點，沒辦法，只能修改代碼了，在修改的過程中，才發現，其實可以把原生的LockPatternView給簡化，繪制更少的圖片，達到更好的效果。總共優化有：①去掉了連線的箭頭，②原生的連線只有白色一種，改成根據不同狀態顯示黃色和紅色兩張色，③.原生view是先畫點再畫線，使得線覆蓋在點的上面，影響美觀，改成先畫連線再畫點。
關健部分代碼onDraw函數：
@Override protected void onDraw(Canvas canvas) { final ArrayList<Cell> pattern = mPattern; final int count = pattern.size(); final boolean[][] drawLookup = mPatternDrawLookup; if (mPatternDisplayMode == DisplayMode.Animate) { // figure out which circles to draw // + 1 so we pause on complete pattern final int oneCycle = (count + 1) * MILLIS_PER_CIRCLE_ANIMATING; final int spotInCycle = (int) (SystemClock.elapsedRealtime() - mAnimatingPeriodStart) % oneCycle; final int numCircles = spotInCycle / MILLIS_PER_CIRCLE_ANIMATING; clearPatternDrawLookup(); for (int i = 0; i < numCircles; i++) { final Cell cell = pattern.get(i); drawLookup[cell.getRow()][cell.getColumn()] = true; } // figure out in progress portion of ghosting line final boolean needToUpdateInProgressPoint = numCircles > 0 && numCircles < count; if (needToUpdateInProgressPoint) { final float percentageOfNextCircle = ((float) (spotInCycle % MILLIS_PER_CIRCLE_ANIMATING)) / MILLIS_PER_CIRCLE_ANIMATING; final Cell currentCell = pattern.get(numCircles - 1); final float centerX = getCenterXForColumn(currentCell.column); final float centerY = getCenterYForRow(currentCell.row); final Cell nextCell = pattern.get(numCircles); final float dx = percentageOfNextCircle * (getCenterXForColumn(nextCell.column) - centerX); final float dy = percentageOfNextCircle * (getCenterYForRow(nextCell.row) - centerY); mInProgressX = centerX + dx; mInProgressY = centerY + dy; } // TODO: Infinite loop here... invalidate(); } final float squareWidth = mSquareWidth; final float squareHeight = mSquareHeight; float radius = (squareWidth * mDiameterFactor * 0.5f); mPathPaint.setStrokeWidth(radius); final Path currentPath = mCurrentPath; currentPath.rewind(); // TODO: the path should be created and cached every time we hit-detect // a cell // only the last segment of the path should be computed here // draw the path of the pattern (unless the user is in progress, and // we are in stealth mode) final boolean drawPath = (!mInStealthMode || mPatternDisplayMode == DisplayMode.Wrong); // draw the arrows associated with the path (unless the user is in // progress, and // we are in stealth mode) boolean oldFlag = (mPaint.getFlags() & Paint.FILTER_BITMAP_FLAG) != 0; mPaint.setFilterBitmap(true); // draw with higher quality since we // render with transforms // draw the lines if (drawPath) { boolean anyCircles = false; for (int i = 0; i < count; i++) { Cell cell = pattern.get(i); // only draw the part of the pattern stored in // the lookup table (this is only different in the case // of animation). if (!drawLookup[cell.row][cell.column]) { break; } anyCircles = true; float centerX = getCenterXForColumn(cell.column); float centerY = getCenterYForRow(cell.row); if (i == 0) { currentPath.moveTo(centerX, centerY); } else { currentPath.lineTo(centerX, centerY); } } // add last in progress section if ((mPatternInProgress || mPatternDisplayMode == DisplayMode.Animate) && anyCircles) { currentPath.lineTo(mInProgressX, mInProgressY); } // chang the line color in different DisplayMode if (mPatternDisplayMode == DisplayMode.Wrong) mPathPaint.setColor(Color.RED); else mPathPaint.setColor(Color.YELLOW); canvas.drawPath(currentPath, mPathPaint); } // draw the circles final int paddingTop = getPaddingTop(); final int paddingLeft = getPaddingLeft(); for (int i = 0; i < 3; i++) { float topY = paddingTop + i * squareHeight; // float centerY = mPaddingTop + i * mSquareHeight + (mSquareHeight // / 2); for (int j = 0; j < 3; j++) { float leftX = paddingLeft + j * squareWidth; drawCircle(canvas, (int) leftX, (int) topY, drawLookup[i][j]); } } mPaint.setFilterBitmap(oldFlag); // restore default flag } 2.第二個值得學習的地方是(代碼來自設置應用中)：在創建解鎖圖案時的枚舉使用，原生代碼中使用了很多枚舉，將繪制圖案時的狀態、底部兩個按鈕狀態、頂部一個TextView顯示的提示文字都緊密的聯系起來。因此，只用監聽LockPatternView動態變化，對應改變底部Button和頂部TextView的狀態即可實現聯動，簡單的方法可以實現很多代碼才能實現的邏輯，個人很喜歡。
①全局的狀態：
/** * Keep track internally of where the user is in choosing a pattern. */ protected enum Stage { // 初始狀態 Introduction(R.string.lockpattern_recording_intro_header, LeftButtonMode.Cancel, RightButtonMode.ContinueDisabled, ID_EMPTY_MESSAGE, true), // 幫助狀態 HelpScreen(R.string.lockpattern_settings_help_how_to_record, LeftButtonMode.Gone, RightButtonMode.Ok, ID_EMPTY_MESSAGE, false), // 繪制過短 ChoiceTooShort(R.string.lockpattern_recording_incorrect_too_short, LeftButtonMode.Retry, RightButtonMode.ContinueDisabled, ID_EMPTY_MESSAGE, true), // 第一次繪制圖案 FirstChoiceValid(R.string.lockpattern_pattern_entered_header, LeftButtonMode.Retry, RightButtonMode.Continue, ID_EMPTY_MESSAGE, false), // 需要再次繪制確認 NeedToConfirm(R.string.lockpattern_need_to_confirm, LeftButtonMode.Cancel, RightButtonMode.ConfirmDisabled, ID_EMPTY_MESSAGE, true), // 確認出錯 ConfirmWrong(R.string.lockpattern_need_to_unlock_wrong, LeftButtonMode.Cancel, RightButtonMode.ConfirmDisabled, ID_EMPTY_MESSAGE, true), // 選擇確認 ChoiceConfirmed(R.string.lockpattern_pattern_confirmed_header, LeftButtonMode.Cancel, RightButtonMode.Confirm, ID_EMPTY_MESSAGE, false); /** * @param headerMessage * The message displayed at the top. * @param leftMode * The mode of the left button. * @param rightMode * The mode of the right button. * @param footerMessage * The footer message. * @param patternEnabled * Whether the pattern widget is enabled. */ Stage(int headerMessage, LeftButtonMode leftMode, RightButtonMode rightMode, int footerMessage, boolean patternEnabled) { this.headerMessage = headerMessage; this.leftMode = leftMode; this.rightMode = rightMode; this.footerMessage = footerMessage; this.patternEnabled = patternEnabled; } final int headerMessage; final LeftButtonMode leftMode; final RightButtonMode rightMode; final int footerMessage; final boolean patternEnabled; } ②.底部兩個按鈕的狀態枚舉：
/** * The states of the left footer button. */ enum LeftButtonMode { // 取消 Cancel(android.R.string.cancel, true), // 取消時禁用 CancelDisabled(android.R.string.cancel, false), // 重試 Retry(R.string.lockpattern_retry_button_text, true), // 重試時禁用 RetryDisabled(R.string.lockpattern_retry_button_text, false), // 消失 Gone(ID_EMPTY_MESSAGE, false); /** * @param text * The displayed text for this mode. * @param enabled * Whether the button should be enabled. */ LeftButtonMode(int text, boolean enabled) { this.text = text; this.enabled = enabled; } final int text; final boolean enabled; } /** * The states of the right button. */ enum RightButtonMode { // 繼續 Continue(R.string.lockpattern_continue_button_text, true), //繼續時禁用 ContinueDisabled(R.string.lockpattern_continue_button_text, false), //確認 Confirm(R.string.lockpattern_confirm_button_text, true), //確認是禁用 ConfirmDisabled(R.string.lockpattern_confirm_button_text, false), //OK Ok(android.R.string.ok, true); /** * @param text * The displayed text for this mode. * @param enabled * Whether the button should be enabled. */ RightButtonMode(int text, boolean enabled) { this.text = text; this.enabled = enabled; } final int text; final boolean enabled; } 就這樣，只要LockPatternView的狀態一發生改變，就會動態改變底部兩個Button的文字和狀態。很簡潔，邏輯性很強。
3.第三個個人覺得比較有用的就是加密這一塊了，為了以后方便使用，我把圖案加密和字符加密分成兩個工具類：LockPatternUtils和LockPasswordUtils兩個文件，本文使用到的是LockPatternUtils。其實所謂的圖案加密也是將其通過SHA-1加密轉化成二進制數再保存到文件中(原生系統保存在/system/目錄下，我這里沒有權限，就保存到本應用目錄下)，解密時，也是將獲取到用戶的輸入通過同樣的方法加密，再與保存到文件中的對比，相同則密碼正確，不同則密碼錯誤。關健代碼就是以下4個函數：
/** * Serialize a pattern. 加密 * * @param pattern * The pattern. * @return The pattern in string form. */ public static String patternToString(List<LockPatternView.Cell> pattern) { if (pattern == null) { return ""; } final int patternSize = pattern.size(); byte[] res = new byte[patternSize]; for (int i = 0; i < patternSize; i++) { LockPatternView.Cell cell = pattern.get(i); res[i] = (byte) (cell.getRow() * 3 + cell.getColumn()); } return new String(res); } /** * Save a lock pattern. * * @param pattern * The new pattern to save. * @param isFallback * Specifies if this is a fallback to biometric weak */ public void saveLockPattern(List<LockPatternView.Cell> pattern) { // Compute the hash final byte[] hash = LockPatternUtils.patternToHash(pattern); try { // Write the hash to file RandomAccessFile raf = new RandomAccessFile(sLockPatternFilename, "rwd"); // Truncate the file if pattern is null, to clear the lock if (pattern == null) { raf.setLength(0); } else { raf.write(hash, 0, hash.length); } raf.close(); } catch (FileNotFoundException fnfe) { // Cant do much, unless we want to fail over to using the settings // provider Log.e(TAG, "Unable to save lock pattern to " + sLockPatternFilename); } catch (IOException ioe) { // Cant do much Log.e(TAG, "Unable to save lock pattern to " + sLockPatternFilename); } } /* * Generate an SHA-1 hash for the pattern. Not the most secure, but it is at * least a second level of protection. First level is that the file is in a * location only readable by the system process. * * @param pattern the gesture pattern. * * @return the hash of the pattern in a byte array. */ private static byte[] patternToHash(List<LockPatternView.Cell> pattern) { if (pattern == null) { return null; } final int patternSize = pattern.size(); byte[] res = new byte[patternSize]; for (int i = 0; i < patternSize; i++) { LockPatternView.Cell cell = pattern.get(i); res[i] = (byte) (cell.getRow() * 3 + cell.getColumn()); } try { MessageDigest md = MessageDigest.getInstance("SHA-1"); byte[] hash = md.digest(res); return hash; } catch (NoSuchAlgorithmException nsa) { return res; } } /** * Check to see if a pattern matches the saved pattern. If no pattern * exists, always returns true. * * @param pattern * The pattern to check. * @return Whether the pattern matches the stored one. */ public boolean checkPattern(List<LockPatternView.Cell> pattern) { try { // Read all the bytes from the file RandomAccessFile raf = new RandomAccessFile(sLockPatternFilename, "r"); final byte[] stored = new byte[(int) raf.length()]; int got = raf.read(stored, 0, stored.length); raf.close(); if (got <= 0) { return true; } // Compare the hash from the file with the entered pattern's hash return Arrays.equals(stored, LockPatternUtils.patternToHash(pattern)); } catch (FileNotFoundException fnfe) { return true; } catch (IOException ioe) { return true; } } 好了，代碼就分析到這里，非常感謝你看到了文章末尾。
本文源碼(utf-8編碼)：Android仿手機QQ圖案解鎖
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持VEVB武林網。
