Android SeekBar實現滑動條效果

2019-10-21 21:46:04

字體：大中小

供稿：網友

本文實例為大家分享了Android SeekBar實現滑動條效果的具體代碼，供大家參考，具體內容如下

SeekBar是ProgressBar的一個子類，下面我們用一個可以改變并顯示當前進度的拖動條例子來演示一下它的使用：

1、main.xml

<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"   android:orientation="vertical" android:layout_width="fill_parent"   android:layout_height="fill_parent">   <SeekBar android:id="@+id/SeekBar01" android:layout_width="245px"     android:layout_height="25px" android:paddingLeft="16px"     android:paddingRight="15px" android:paddingTop="5px"     android:paddingBottom="5px" android:progress="0" android:max="0"     android:secondaryProgress="0" />   <TextView android:layout_width="fill_parent"     android:layout_height="wrap_content" android:text="@string/hello"     android:id="@+id/TextView01" /> </LinearLayout>

2、java：

package com.esri.arcgis.sample;  import android.app.Activity; import android.os.Bundle; import android.widget.SeekBar; import android.widget.SeekBar.OnSeekBarChangeListener; import android.widget.TextView; import android.widget.Toast;  public class AndroidSeekBar extends Activity {   /** Called when the activity is first created. */   @Override   public void onCreate(Bundle savedInstanceState) {     super.onCreate(savedInstanceState);     setContentView(R.layout.main);      // 找到拖動條和文本框     final SeekBar sb = (SeekBar) findViewById(R.id.SeekBar01);     final TextView tv1 = (TextView) findViewById(R.id.TextView01);      // 設置拖動條的初始值和文本框的初始值     sb.setMax(100);     sb.setProgress(30);     tv1.setText("當前進度：" + sb.getProgress());      // 設置拖動條改變監聽器     OnSeekBarChangeListener osbcl = new OnSeekBarChangeListener() {        @Override       public void onProgressChanged(SeekBar seekBar, int progress,           boolean fromUser) {         tv1.setText("當前進度：" + sb.getProgress());         Toast.makeText(getApplicationContext(), "onProgressChanged",             Toast.LENGTH_SHORT).show();       }        @Override       public void onStartTrackingTouch(SeekBar seekBar) {         Toast.makeText(getApplicationContext(), "onStartTrackingTouch",             Toast.LENGTH_SHORT).show();       }        @Override       public void onStopTrackingTouch(SeekBar seekBar) {         Toast.makeText(getApplicationContext(), "onStopTrackingTouch",             Toast.LENGTH_SHORT).show();       }      };      // 為拖動條綁定監聽器     sb.setOnSeekBarChangeListener(osbcl);    } }

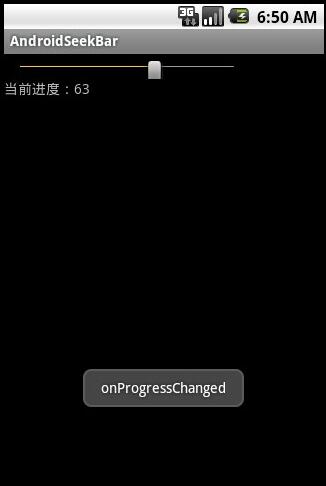

3、運行程序：
