一、引入
二、大致思路

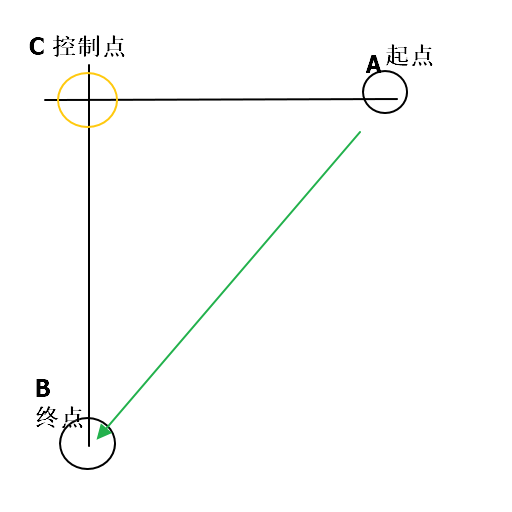

1、如圖所示主要有三個點，起點、終點、以及貝塞爾曲線的控制點
2、起點即點擊的View的位置，一般來說用如下方式即可取得。startPosition[0]為x軸開始坐標，startPosition[1]為Y軸終點坐標，兩點可以看作對角線上面的兩個端點（左上角x坐標，右下角y坐標）
//貝塞爾起始數據點int[] startPosition = new int[2];view.getLocationOnScreen(startPosition);
3、終點即購物車籃子的位置，與起點類似
mShoppingCart.getLocationInWindow(endPosition);
4、控制點，我選的控制點為上圖的C點，即A點的y坐標，B點的X坐標
controlPosition[0] = endPosition[0];controlPosition[1] = startPosition[1];
5、需要注意的地方，我不清楚是不是因為我的布局的問題，獲取到的點擊的A點總是會有一個偏移，后來經同事提醒，減去了TabLayout的坐標的y軸坐標即位置才可以。
// 起點int[] startPosition;// 終點int[] endPosition = new int[2];// 貝塞爾控制點int[] controlPosition = new int[2];// tablayout位置int[] tablayoutPosition = new int[2];startPosition = data.getStartPosition();mShoppingCart.getLocationInWindow(endPosition);mTabLayout.getLocationInWindow(tablayoutPosition);// 處理起點y坐標偏移的問題startPosition[1] = startPosition[1] - tablayoutPosition[1] - mTabLayout.getHeight();// 終點進行一下居中處理endPosition[0] = endPosition[0] + (mShoppingCart.getWidth() / 2);controlPosition[0] = endPosition[0];controlPosition[1] = startPosition[1];
6、通過Path的quadTo方法繪制貝塞爾曲線，使用PathMeasure獲取點的坐標（借助ValueAnimator.ofFloat()配合getPosTan()來獲取坐標）
Path path = new Path();path.moveTo(startPosition[0], startPosition[1]);path.quadTo(controlPosition[0], controlPosition[1], endPosition[0], endPosition[1]);PathMeasure pathMeasure = new PathMeasure();// false表示path路徑不閉合pathMeasure.setPath(path, false);// ofFloat是一個生成器ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, pathMeasure.getLength());// 勻速線性插值器valueAnimator.setInterpolator(new LinearInterpolator());valueAnimator.setDuration(800);valueAnimator.addUpdateListener(animation -> { float value = (Float) animation.getAnimatedValue(); pathMeasure.getPosTan(value, currentPosition, null); imageView.setX(currentPosition[0]); imageView.setY(currentPosition[1]);});valueAnimator.start();7、下面是用屬性動畫給購物車籃子做了一個放大縮小的動畫效果
// mShoppingCart是ViewObjectAnimator shoppingCartX = ObjectAnimator.ofFloat(mShoppingCart, "scaleX", 1.0f, 1.3f, 1.0f);ObjectAnimator shoppingCartY = ObjectAnimator.ofFloat(mShoppingCart, "scaleY", 1.0f, 1.3f, 1.0f);shoppingCartX.setInterpolator(new AccelerateInterpolator());shoppingCartY.setInterpolator(new AccelerateInterpolator());AnimatorSet shoppingCart = new AnimatorSet();shoppingCart .play(shoppingCartX) .with(shoppingCartY);shoppingCart.setDuration(800);shoppingCart.start();
三、稍完整的大部分代碼
private void AddAnimation(AddEventBean data) { // 起點 int[] startPosition; // 終點 int[] endPosition = new int[2]; // 貝塞爾控制點 int[] controlPosition = new int[2]; // 當前位置 float[] currentPosition = new float[2]; // tablayout位置 int[] tablayoutPosition = new int[2]; startPosition = data.getStartPosition(); mShoppingCart.getLocationInWindow(endPosition); mTabLayout.getLocationInWindow(tablayoutPosition); // 處理起點y坐標偏移的問題 startPosition[1] = startPosition[1] - tablayoutPosition[1] - mTabLayout.getHeight(); // 終點進行一下居中處理 endPosition[0] = endPosition[0] + (mShoppingCart.getWidth() / 2); controlPosition[0] = endPosition[0]; controlPosition[1] = startPosition[1]; final ImageView imageView = new ImageView(this); mConView.addView(imageView); imageView.setImageResource(R.drawable.specialadd); imageView.getLayoutParams().width = getResources().getDimensionPixelSize(R.dimen.dp_px_30); imageView.getLayoutParams().height = getResources().getDimensionPixelSize(R.dimen.dp_px_30); imageView.setScaleType(ImageView.ScaleType.CENTER_CROP); imageView.setVisibility(View.VISIBLE); imageView.setX(startPosition[0]); imageView.setY(startPosition[1]); Path path = new Path(); path.moveTo(startPosition[0], startPosition[1]); path.quadTo(controlPosition[0], controlPosition[1], endPosition[0], endPosition[1]); PathMeasure pathMeasure = new PathMeasure(); // false表示path路徑不閉合 pathMeasure.setPath(path, false); // ofFloat是一個生成器 ValueAnimator valueAnimator = ValueAnimator.ofFloat(0, pathMeasure.getLength()); // 勻速線性插值器 valueAnimator.setInterpolator(new LinearInterpolator()); valueAnimator.setDuration(800); valueAnimator.addUpdateListener(animation -> { float value = (Float) animation.getAnimatedValue(); pathMeasure.getPosTan(value, currentPosition, null); imageView.setX(currentPosition[0]); imageView.setY(currentPosition[1]); }); valueAnimator.start(); ObjectAnimator shoppingCartX = ObjectAnimator.ofFloat(mShoppingCart, "scaleX", 1.0f, 1.3f, 1.0f); ObjectAnimator shoppingCartY = ObjectAnimator.ofFloat(mShoppingCart, "scaleY", 1.0f, 1.3f, 1.0f); shoppingCartX.setInterpolator(new AccelerateInterpolator()); shoppingCartY.setInterpolator(new AccelerateInterpolator()); AnimatorSet shoppingCart = new AnimatorSet(); shoppingCart .play(shoppingCartX) .with(shoppingCartY); shoppingCart.setDuration(800); shoppingCart.start(); valueAnimator.addListener(new Animator.AnimatorListener() { @Override public void onAnimationStart(Animator animation) { } //當動畫結束后： @Override public void onAnimationEnd(Animator animation) { goodsChange(data); } @Override public void onAnimationCancel(Animator animation) { } @Override public void onAnimationRepeat(Animator animation) { } });}四、大致寫下布局（同時也算留做備份）
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" ... ...> <RelativeLayout ... ...> 頂部常駐的toolbar </RelativeLayout> <android.support.design.widget.CoordinatorLayout android:layout_width="match_parent" android:layout_height="0dp" android:layout_weight="1"> <android.support.design.widget.AppBarLayout ... ...> <android.support.design.widget.CollapsingToolbarLayout ... ... app:layout_scrollFlags="scroll|exitUntilCollapsed"> <LinearLayout ... ...> TabLayout上面的View </LinearLayout> </android.support.design.widget.CollapsingToolbarLayout> <android.support.design.widget.TabLayout ... ... /> </android.support.design.widget.AppBarLayout> <RelativeLayout ... ... android:fillViewport="true" app:layout_behavior="@string/appbar_scrolling_view_behavior"> <android.support.v4.view.ViewPager android:id="@+id/view_pager" android:layout_width="match_parent" android:layout_height="match_parent" /> </RelativeLayout> </android.support.design.widget.CoordinatorLayout> <LinearLayout ... ...> 最下面的購物車一欄 </LinearLayout></LinearLayout>
總結
