從Android 5.0開始，谷歌公司推出了一個用于大量數據展示的新控件RecylerView，可以用來代替傳統的ListView，更加強大和靈活。在上篇文章給大家介紹了Android RecylerView入門教程，大家可以點擊查看詳情。

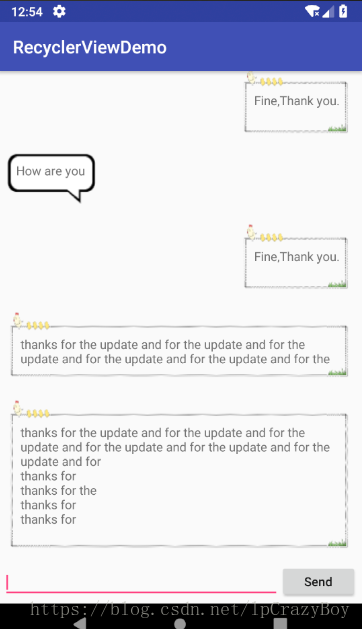

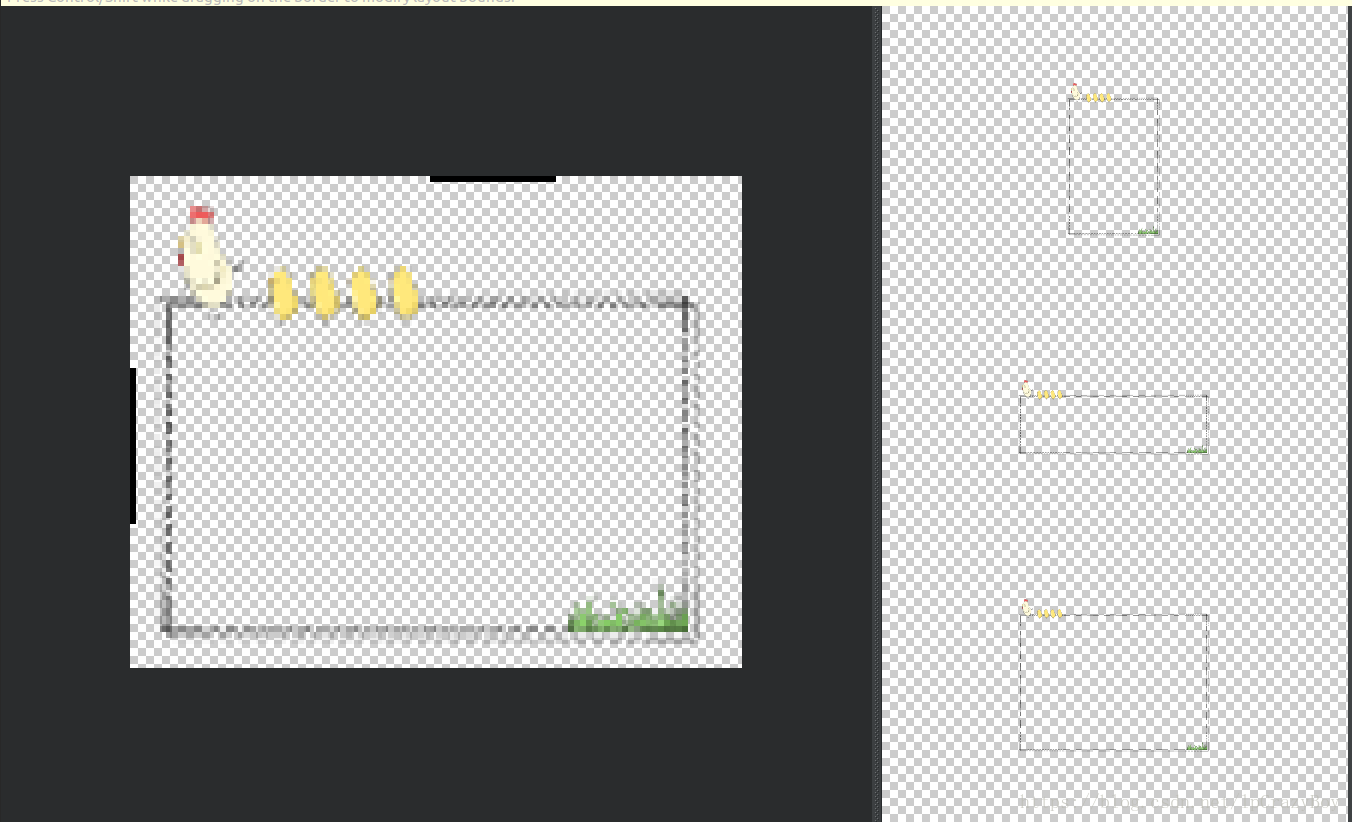

效果圖如下：(其中，聊天框背景圖用9-patch圖，可以內容自適應調節。利用AndroidStudio自帶的功能制作就行了，圖片->右鍵->create 9-patch file。
其中要注意的是：
1、將9-patch圖保存到drawable目錄下才管用。
2、要將背景圖片處理一下，縮放到足夠小，它會自動伸縮。)
1、activity_main.xml的代碼如下：
<?xml version="1.0" encoding="utf-8"?><RelativeLayout android:layout_width="match_parent" android:layout_height="match_parent" xmlns:android="http://schemas.android.com/apk/res/android"> <android.support.v7.widget.RecyclerView android:id="@+id/Main_rView" android:layout_width="match_parent" android:layout_height="wrap_content" android:paddingBottom="50dp"></android.support.v7.widget.RecyclerView> <LinearLayout android:layout_width="match_parent" android:layout_height="50dp" android:layout_alignParentBottom="true" android:padding="5dp" android:orientation="horizontal"> <EditText android:id="@+id/Main_etContent" android:layout_width="0dp" android:layout_weight="1" android:layout_height="wrap_content" android:minLines="1" android:maxLines="3" android:hint="說點什么吧" android:textSize="14dp"/> <Button android:id="@+id/Main_btnSend" android:layout_width="wrap_content" android:layout_height="wrap_content" android:textSize="14dp" android:text="Send" android:textAllCaps="false"/> </LinearLayout></RelativeLayout>
2、layout_item_content.xml的代碼如下：
<?xml version="1.0" encoding="utf-8"?><RelativeLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:padding="10dp" xmlns:android="http://schemas.android.com/apk/res/android"> <LinearLayout android:id="@+id/Layout_Item_Content_lLayoutReceive" android:layout_width="wrap_content" android:layout_height="wrap_content" android:padding="10dp" android:layout_alignParentLeft="true" android:background="@drawable/bg_chat2" android:orientation="vertical"> <TextView android:id="@+id/Layout_Item_Content_tvContentReceive" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginBottom="10dp" android:text="內容內容內" android:textSize="14dp"/> </LinearLayout> <LinearLayout android:id="@+id/Layout_Item_Content_lLayoutSend" android:layout_width="wrap_content" android:layout_height="wrap_content" android:padding="10dp" android:layout_alignParentRight="true" android:background="@drawable/bg_chat1" android:orientation="vertical"> <TextView android:id="@+id/Layout_Item_Content_tvContentSend" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="內容" android:textSize="14dp" android:layout_marginTop="20dp" android:layout_marginLeft="5dp" android:layout_marginRight="5dp" /> </LinearLayout></RelativeLayout>
3、RecyclerViewAdapter.java的代碼如下：
package com.deepreality.recyclerviewdemo;import android.content.Context;import android.support.annotation.NonNull;import android.support.v7.widget.RecyclerView;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.LinearLayout;import android.widget.TextView;import java.util.List;public class RecyclerViewAdapter extends RecyclerView.Adapter<RecyclerViewAdapter.ViewHolder> { private Context mContext; private List<Tb_ChatContent> tbChatContentList; private Tb_ChatContent tb_chatContent; static class ViewHolder extends RecyclerView.ViewHolder { private LinearLayout lLayoutReceive, lLayoutSend; private TextView tvReceive, tvSend; public ViewHolder(View itemView) { super(itemView); lLayoutReceive = itemView.findViewById(R.id.Layout_Item_Content_lLayoutReceive); lLayoutSend = itemView.findViewById(R.id.Layout_Item_Content_lLayoutSend); tvReceive = itemView.findViewById(R.id.Layout_Item_Content_tvContentReceive); tvSend = itemView.findViewById(R.id.Layout_Item_Content_tvContentSend); } } public RecyclerViewAdapter(Context mContext, List<Tb_ChatContent> tbChatContentList) { this.mContext = mContext; this.tbChatContentList = tbChatContentList; } @NonNull @Override public RecyclerViewAdapter.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) { View view = LayoutInflater.from(mContext).inflate(R.layout.layout_item_content, parent, false); ViewHolder viewHolder = new ViewHolder(view); return viewHolder; } @Override public void onBindViewHolder(@NonNull RecyclerViewAdapter.ViewHolder holder, int position) { tb_chatContent = tbChatContentList.get(position); if (tb_chatContent.getType() == 0) { holder.lLayoutReceive.setVisibility(View.VISIBLE); holder.lLayoutSend.setVisibility(View.GONE); holder.tvReceive.setText(tb_chatContent.getContent()); } else { holder.lLayoutReceive.setVisibility(View.GONE); holder.lLayoutSend.setVisibility(View.VISIBLE); holder.tvSend.setText(tb_chatContent.getContent()); } } @Override public int getItemCount() { return tbChatContentList.size(); }}4、MainActivity.java的代碼如下：
package com.deepreality.recyclerviewdemo;import android.content.Context;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.support.v7.widget.LinearLayoutManager;import android.support.v7.widget.RecyclerView;import android.view.View;import android.widget.Button;import android.widget.EditText;import java.util.ArrayList;import java.util.List;public class MainActivity extends AppCompatActivity implements View.OnClickListener { private Context mContext; private RecyclerView rViewChat; private EditText etContent; private Button btnSend; private List<Tb_ChatContent> tbChatContentList; private Tb_ChatContent tb_chatContent; private RecyclerViewAdapter recyclerViewAdapter; private String[] arrayContents = new String[]{"How are you", "Fine,Thank you.", "How are you" , "Fine,Thank you.", "How are you", "Fine,Thank you."}; private int[] arrayTypes = new int[] {0, 1, 0, 1, 0, 1}; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); baseDataInit(); bindViews(); viewsAddListener(); viewsDataInit(); } private void baseDataInit() { mContext = this; tbChatContentList = new ArrayList<>(); } private void bindViews() { rViewChat = findViewById(R.id.Main_rView); etContent = findViewById(R.id.Main_etContent); btnSend = findViewById(R.id.Main_btnSend); } private void viewsAddListener() { btnSend.setOnClickListener(this); } private void viewsDataInit() { rViewSetAdapter(); } private void rViewSetAdapter() { for (int i = 0; i < arrayContents.length; i++) { tb_chatContent = new Tb_ChatContent(arrayContents[i], arrayTypes[i]); tbChatContentList.add(tb_chatContent); } //設置RecylerView的排列方式（線性，網格，瀑布流三種） LinearLayoutManager linearLayoutManager = new LinearLayoutManager(mContext); rViewChat.setLayoutManager(linearLayoutManager); //創建并綁定數據適配器 recyclerViewAdapter = new RecyclerViewAdapter(mContext, tbChatContentList); rViewChat.setAdapter(recyclerViewAdapter); } @Override public void onClick(View v) { switch (v.getId()) { case R.id.Main_btnSend: { tb_chatContent = new Tb_ChatContent(etContent.getText().toString(), Tb_ChatContent.TYPE_SEND); tbChatContentList.add(tb_chatContent); //數據刷新 recyclerViewAdapter.notifyDataSetChanged(); //滑動到某一位置 rViewChat.smoothScrollToPosition(tbChatContentList.size() - 1); break; } default:break; } }}總結
以上所述是小編給大家介紹的Android中使用RecylerView實現聊天框效果，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對VEVB武林網網站的支持！
