Android Viewpager實現無限循環輪播圖

2019-10-21 21:35:46

字體：大中小

來源：轉載

供稿：網友

在網上找了很多viewpager實現圖片輪播的，但是大多數通過以下方式在PagerAdapter的getCount()返回一個無限大的數，來實現偽無限

@Override  public int getCount() {    return Integer.MAX_VALUE;//返回一個無限大的值，可以 無限循環  }

雖然通過這種方式是能達到效果，但是從嚴格意義上來說并不是真正的無限。

Android,Viewpager,輪播圖

假如有五張輪播圖 item的編號為（0,1,2,3,4）要想實現無限循環我們在這五張的頭部和尾部各加一張即（5+2）張,item編號為（0,1,2,3,4,5,6）其中編號為0,6的兩張不做展示只是為了做循環輪播的鋪墊，使得播放更加平滑。

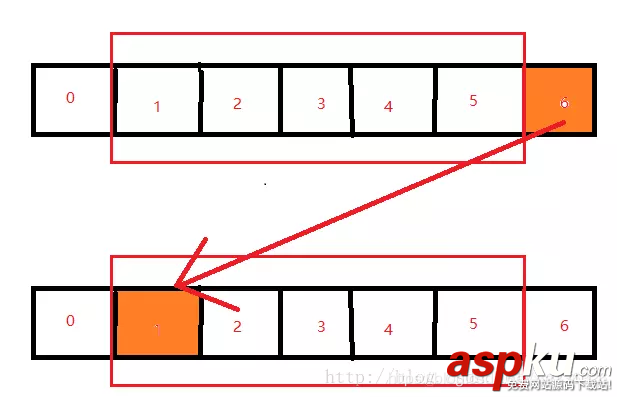

1、當我們從編號為5 右滑的時候到了編號6 這時候就將當前頁面設置為1

Android,Viewpager,輪播圖

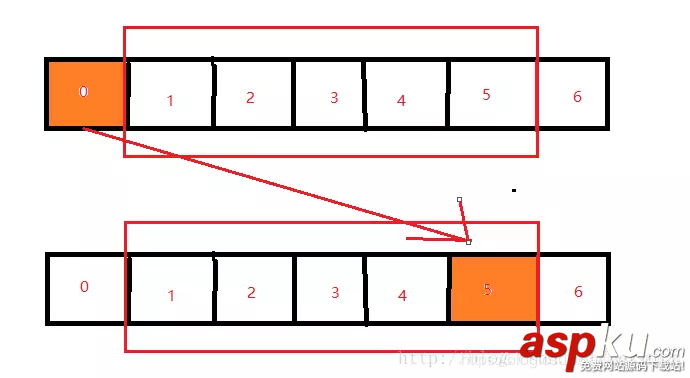

2、當我們從編號為1左滑的時候到了編號0 這時候就將當前頁面設置為5

Android,Viewpager,輪播圖

這么做之后就可以實現無限輪播怎么保證從編號6跳轉編號1的時候不出現頁面停頓突然跳到下一頁的現象呢？

public Object instantiateItem (ViewGroup container, int position)

在指定的位置創建頁面；適配器負責添加view到這個容器中，然而它只保證在finishUpdate(ViewGroup)返回時才完成。

public void destroyItem (ViewGroup container, int position, Object object)

刪除指定位置的頁面；適配器負責從view容器中刪除view，然而它只保證在finishUpdate(ViewGroup)返回時才完成。

所以說重點就在于finishUpdate(ViewGroup)這個方法其實無論是創建view添加到容器中還是銷毀view 都是在此方法結束之后執行的

換句話說就是我在這個方法里讓頁面完成從編號5跳轉到編號1 或者從編號1跳轉到編號5，此方法完成時視圖還未完成創建或者銷毀這樣也就不會出現頁面停頓突然跳到下一頁的現象。

@Override  public void finishUpdate(ViewGroup container) {    super.finishUpdate(container);     int position = viewPager.getCurrentItem();        if (position == 0) {      position = simpleDraweeViewList.size() - 2;      viewPager.setCurrentItem(position,false);    } else if (position == simpleDraweeViewList.size() - 1) {      position = 1;      viewPager.setCurrentItem(position,false);    }  }

話不多說，上代碼：

布局文件：

<?xml version="1.0" encoding="utf-8"?><android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:app="http://schemas.android.com/apk/res-auto"  xmlns:tools="http://schemas.android.com/tools"  android:layout_width="match_parent"  android:layout_height="match_parent"  tools:context=".MainActivity">   <FrameLayout    android:id="@+id/frameLayout"    android:layout_width="0dp"    android:layout_height="200dp"    app:layout_constraintEnd_toEndOf="parent"    app:layout_constraintHorizontal_bias="0.0"    app:layout_constraintStart_toStartOf="parent"    app:layout_constraintTop_toTopOf="parent">     <android.support.v4.view.ViewPager      android:id="@+id/viewPager"      android:layout_width="match_parent"      android:layout_height="match_parent"      tools:layout_editor_absoluteX="8dp"      tools:layout_editor_absoluteY="0dp" />     <LinearLayout      android:layout_width="match_parent"      android:layout_height="35dip"      android:layout_gravity="bottom"      android:background="#33000000"      android:gravity="center_vertical"      android:orientation="horizontal"      android:weightSum="10">       <TextView        android:id="@+id/tv_pager_title"        android:layout_width="0dp"        android:layout_height="35dip"        android:layout_weight="8"        android:gravity="center_vertical"        android:paddingLeft="8dip"        android:text="加載圖片輪播失敗"        android:textColor="@android:color/white" />       <LinearLayout        android:id="@+id/lineLayout_dot"        android:layout_width="0dp"        android:layout_height="match_parent"        android:layout_marginRight="5dp"        android:layout_weight="2"        android:gravity="center|right"        android:orientation="horizontal"        android:paddingLeft="3dp"        android:paddingRight="3dp" />     </LinearLayout>   </FrameLayout> </android.support.constraint.ConstraintLayout>

最主要的PagerAdapter：

import android.content.Context;import android.support.v4.view.PagerAdapter;import android.support.v4.view.ViewPager;import android.util.Log;import android.view.View;import android.view.ViewGroup; import com.facebook.drawee.view.SimpleDraweeView; import java.util.List; public class ImagesPagerAdapter extends PagerAdapter {  private List<SimpleDraweeView> simpleDraweeViewList;  private ViewPager viewPager;  private Context context;   private SimpleDraweeView simpleDraweeView;   public ImagesPagerAdapter(List<SimpleDraweeView> simpleDraweeViewList, ViewPager viewPager, Context context) {    this.simpleDraweeViewList = simpleDraweeViewList;    this.viewPager = viewPager;    this.context = context;  }   @Override  public int getCount() { return simpleDraweeViewList.size();  }   //刪除指定位置的頁面；適配器負責從view容器中刪除view，然而它只保證在finishUpdate(ViewGroup)返回時才完成。  @Override  public void destroyItem(ViewGroup container, int position, Object object) {    // 把ImageView從ViewPager中移除掉    viewPager.removeView(simpleDraweeViewList.get(position));    //super.destroyItem(container, position, object);  }   //是否獲取緩存  @Override  public boolean isViewFromObject(View view, Object object) {    return view == object;  }    //實例化Item  //在指定的位置創建頁面；適配器負責添加view到這個容器中，然而它只保證在finishUpdate(ViewGroup)返回時才完成。  @Override  public Object instantiateItem(ViewGroup container, int position) {    simpleDraweeView = simpleDraweeViewList.get(position);    viewPager.addView(simpleDraweeView);    return simpleDraweeView;  }   @Override  public int getItemPosition(Object object) {    return POSITION_NONE;  }   //無論是創建view添加到容器中 還是 銷毀view 都是在此方法結束之后執行的 @Override  public void finishUpdate(ViewGroup container) {    super.finishUpdate(container);     int position = viewPager.getCurrentItem();        if (position == 0) {      position = simpleDraweeViewList.size() - 2;      viewPager.setCurrentItem(position,false);    } else if (position == simpleDraweeViewList.size() - 1) {      position = 1;      viewPager.setCurrentItem(position,false);    }  }   /*  private int mChildCount = 0;  @Override  public void notifyDataSetChanged() {    mChildCount = getCount();    super.notifyDataSetChanged();  }  @Override  public int getItemPosition(Object object) {    if (mChildCount > 0) {      mChildCount--;      Log.e("image","getItemPosition");      return POSITION_NONE;    }    return super.getItemPosition(object);  }*/}

import android.app.Activity;import android.content.Context;import android.graphics.drawable.Drawable;import android.support.v4.content.ContextCompat;import android.support.v4.view.ViewPager;import android.util.Log;import android.view.View;import android.view.ViewGroup;import android.widget.LinearLayout;import android.widget.TextView; import com.facebook.drawee.view.SimpleDraweeView; import java.util.ArrayList;import java.util.List;   public class ImageCarousel {  private Context context;  private ViewPager viewPager;  private TextView tvTitle;  private LinearLayout dotsRoot;  private int time;    private List<View> dots;//小點  private int previousPosition = 1;//前一個被選中的position  private List<SimpleDraweeView> simpleDraweeViewList;  private String[] titles;//標題數組   private ImagesPagerAdapter adapter;   private AutoPlayThread autoPlayThread;  private volatile boolean isExit = true;   private static final int FIRST_PAGE = 1;    public ImageCarousel(Context context, ViewPager viewPager, TextView tvTitle,             List<View> dots, int time) {    this.context = context;    this.viewPager = viewPager;    this.tvTitle = tvTitle;    this.dots = dots;    this.time = time;    Log.e("image", "構造方法");  }     /**   * 傳入數據   *   * @param simpleDraweeViewList SimpleDraweeView集合   * @param titles        標題數組   * @return this 本身   */  public ImageCarousel init(List<SimpleDraweeView> simpleDraweeViewList, String[] titles) {    this.simpleDraweeViewList = simpleDraweeViewList;    this.titles = titles;    Log.e("image", "init");    autoPlayThread = new AutoPlayThread();     return this;  }   /**   * 重新加載，有待考驗...   *   * @param simpleDraweeViewList SimpleDraweeView集合   * @param titles        標題數組   */  public void reload(List<SimpleDraweeView> simpleDraweeViewList, String[] titles) {    init(simpleDraweeViewList, titles);    previousPosition = 0;    start();  }   /**   * 設置設配器，并實現輪播功能   */  public void start() {    if (adapter != null) {      adapter = null;    }    adapter = new ImagesPagerAdapter(this.simpleDraweeViewList, viewPager, context);    viewPager.setAdapter(adapter);    viewPager.addOnPageChangeListener(new ViewPager.OnPageChangeListener() {      @Override      public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {       }       //當被選擇      @Override      public void onPageSelected(int position) {         int currentPosition = 1;        if (position == simpleDraweeViewList.size() - 1) {          // 設置當前值為1          currentPosition = FIRST_PAGE;        } else if (position == 0) {          // 如果索引值為0了,就設置索引值為倒數第二個          currentPosition = simpleDraweeViewList.size() - 2;        } else {          currentPosition = position;        }         // 把當前選中的點給切換了, 還有描述信息也切換        tvTitle.setText(titles[currentPosition]);//圖片下面設置顯示文本        //設置輪播點 可設置成傳入的圖         Log.d("dots", "previousPosition=" + previousPosition + " currentPosition=" + currentPosition);        dots.get(previousPosition-1).setBackgroundResource(R.drawable.ic_dot_focused);        dots.get(currentPosition-1).setBackgroundResource(R.drawable.ic_dot_normal);        // 把當前的索引賦值給前一個索引變量, 方便下一次再切換.        previousPosition = currentPosition;      }       @Override      public void onPageScrollStateChanged(int state) {  // SCROLL_STATE_IDLE ：空閑狀態   // SCROLL_STATE_DRAGGING ：滑動狀態   // SCROLL_STATE_SETTLING ：滑動后滑翔的狀態        if (state == ViewPager.SCROLL_STATE_DRAGGING) {         } else if(state == ViewPager.SCROLL_STATE_IDLE){     }      }    });     setFirstLocation();    //autoPlayThread.start();   }   /**   * 設置剛打開app時顯示的圖片和文字   */  private void setFirstLocation() {    tvTitle.setText(titles[0]);    dots.get(0).setBackgroundResource(R.drawable.ic_dot_normal);    viewPager.setCurrentItem(1);  }   /**   * 設置是否輪播   *   * @param b   */  private void setAutoPlay(boolean b) {    /*if (b && suspendRequested) {      autoPlayThread.requestResume();    } else if (!b){      autoPlayThread.requestSuspend();    }*/  }    public void stopAutoPlay() {    if (autoPlayThread != null) {      Log.e("thrad", "暫停");      isExit = true;      autoPlayThread.interrupt();      autoPlayThread = null;    }  }   /**   * 請求繼續   */  public void startAutoPlay() {    Log.e("thrad", "開始");    isExit = false;    autoPlayThread = null;    autoPlayThread = new AutoPlayThread();    autoPlayThread.start();  }   /**   * 自動播放線程，添加暫停和繼續方法   */  class AutoPlayThread extends Thread {     @Override    public synchronized void run() {      while (!isExit) {        try {          Thread.sleep(time);        } catch (InterruptedException e) {          Log.e("thrad", "強制請求退出線程");          break;        }        ((Activity) context).runOnUiThread(new Runnable() {          @Override          public void run() {            viewPager.setCurrentItem(viewPager.getCurrentItem() + 1);          }        });         if (this.interrupted()) {          Log.e("thrad", "已經是停止狀態了，我要退出了");          break;        }      }     }   } }

mainActivity.java:

import android.app.Activity;import android.content.Context;import android.graphics.drawable.Drawable;import android.net.Uri;import android.support.v4.content.ContextCompat;import android.support.v4.view.ViewPager;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.view.View;import android.view.ViewGroup;import android.widget.AbsListView;import android.widget.LinearLayout;import android.widget.TextView; import com.facebook.drawee.backends.pipeline.Fresco;import com.facebook.drawee.backends.pipeline.PipelineDraweeController;import com.facebook.drawee.drawable.ScalingUtils;import com.facebook.drawee.generic.GenericDraweeHierarchy;import com.facebook.drawee.generic.GenericDraweeHierarchyBuilder;import com.facebook.drawee.view.SimpleDraweeView;import com.facebook.imagepipeline.common.ResizeOptions;import com.facebook.imagepipeline.request.ImageRequest;import com.facebook.imagepipeline.request.ImageRequestBuilder; import java.util.ArrayList;import java.util.List; public class MainActivity extends AppCompatActivity implements View.OnClickListener {   // 圖片輪播控件  private ViewPager mViewPager;  private TextView mTvPagerTitle;  private LinearLayout mLineLayoutDot;  private ImageCarousel imageCarousel;  private List<View> dots;//小點   // 圖片數據，包括圖片標題、圖片鏈接、數據、點擊要打開的網站（點擊打開的網頁或一些提示指令）  private List<ImageInfo> imageInfoList;   @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_main);    initView();    initEvent();    imageStart();   }   @Override  public void onClick(View v) {   }   /**   * 初始化事件   * 左右多添加一張圖片   */  private void initEvent() {    imageInfoList = new ArrayList<>(); imageInfoList.add(new ImageInfo(1, "圖片5，公告5啦啦啦啦", "", "http://e.hiphotos.baidu.com/image/h%3D300/sign=73443062281f95cab9f594b6f9177fc5/72f082025aafa40fafb5fbc1a664034f78f019be.jpg", ""));    imageInfoList.add(new ImageInfo(2, "圖片1，公告1啦啦啦啦", "", "http://d.hiphotos.baidu.com/image/pic/item/6159252dd42a2834a75bb01156b5c9ea15cebf2f.jpg", ""));    imageInfoList.add(new ImageInfo(3, "圖片2，公告2啦啦啦啦", "", "http://c.hiphotos.baidu.com/image/h%3D300/sign=cfce96dfa251f3dedcb2bf64a4eff0ec/4610b912c8fcc3ce912597269f45d688d43f2039.jpg", ""));    imageInfoList.add(new ImageInfo(4, "圖片3，公告3啦啦啦啦", "", "http://e.hiphotos.baidu.com/image/pic/item/6a600c338744ebf85ed0ab2bd4f9d72a6059a705.jpg", ""));    imageInfoList.add(new ImageInfo(5, "圖片4，公告4啦啦啦啦", "", "http://b.hiphotos.baidu.com/image/h%3D300/sign=8ad802f3801001e9513c120f880e7b06/a71ea8d3fd1f4134be1e4e64281f95cad1c85efa.jpg", ""));    imageInfoList.add(new ImageInfo(6, "圖片5，公告5啦啦啦啦", "", "http://e.hiphotos.baidu.com/image/h%3D300/sign=73443062281f95cab9f594b6f9177fc5/72f082025aafa40fafb5fbc1a664034f78f019be.jpg", "")); imageInfoList.add(new ImageInfo(7, "圖片1，公告1啦啦啦啦", "", "http://d.hiphotos.baidu.com/image/pic/item/6159252dd42a2834a75bb01156b5c9ea15cebf2f.jpg", ""));   }   /**   * 初始化控件   */  private void initView() {     mViewPager = findViewById(R.id.viewPager);    mTvPagerTitle = findViewById(R.id.tv_pager_title);    mLineLayoutDot = findViewById(R.id.lineLayout_dot);   }   private void imageStart() {    //設置圖片輪播    int[] imgaeIds = new int[]{R.id.pager_image1, R.id.pager_image2, R.id.pager_image3, R.id.pager_image4,        R.id.pager_image5, R.id.pager_image6, R.id.pager_image7, R.id.pager_image8};    String[] titles = new String[imageInfoList.size()];    List<SimpleDraweeView> simpleDraweeViewList = new ArrayList<>();     for (int i = 0; i < imageInfoList.size(); i++) {      titles[i] = imageInfoList.get(i).getTitle();      SimpleDraweeView simpleDraweeView = new SimpleDraweeView(this);      simpleDraweeView.setAspectRatio(1.78f);      // 設置一張默認的圖片      GenericDraweeHierarchy hierarchy = new GenericDraweeHierarchyBuilder(this.getResources())          .setPlaceholderImage(ContextCompat.getDrawable(this, R.drawable.defult), ScalingUtils.ScaleType.CENTER_CROP).build();      simpleDraweeView.setHierarchy(hierarchy);      simpleDraweeView.setLayoutParams(new AbsListView.LayoutParams(AbsListView.LayoutParams.MATCH_PARENT, AbsListView.LayoutParams.WRAP_CONTENT));       //加載高分辨率圖片;      ImageRequest imageRequest = ImageRequestBuilder.newBuilderWithSource(Uri.parse(imageInfoList.get(i).getImage()))          .setResizeOptions(new ResizeOptions(1280, 720))          .build();      PipelineDraweeController controller = (PipelineDraweeController) Fresco.newDraweeControllerBuilder()          //.setLowResImageRequest(ImageRequest.fromUri(Uri.parse(listItemBean.test_pic_low))) //在加載高分辨率圖片之前加載低分辨率圖片          .setImageRequest(imageRequest)          .setOldController(simpleDraweeView.getController())          .build();      simpleDraweeView.setController(controller);       simpleDraweeView.setId(imgaeIds[i]);//給view設置id      simpleDraweeView.setTag(imageInfoList.get(i));      simpleDraweeView.setOnClickListener(this);      titles[i] = imageInfoList.get(i).getTitle();      simpleDraweeViewList.add(simpleDraweeView);     }     dots = addDots(mLineLayoutDot, fromResToDrawable(this, R.drawable.ic_dot_focused), simpleDraweeViewList.size());    imageCarousel = new ImageCarousel(this, mViewPager, mTvPagerTitle, dots, 5000);    imageCarousel.init(simpleDraweeViewList, titles)        .startAutoPlay();    imageCarousel.start();   }    /**   * 動態添加一個點   *   * @param linearLayout 添加到LinearLayout布局   * @param backgount  設置   * @return 小點的Id   */  private int addDot(final LinearLayout linearLayout, Drawable backgount) {    final View dot = new View(this);    LinearLayout.LayoutParams dotParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT,        ViewGroup.LayoutParams.WRAP_CONTENT);    dotParams.width = 16;    dotParams.height = 16;    dotParams.setMargins(4, 0, 4, 0);    dot.setLayoutParams(dotParams);    dot.setBackground(backgount);    dot.setId(View.generateViewId());    ((Activity) this).runOnUiThread(new Runnable() {      @Override      public void run() {        linearLayout.addView(dot);      }    });     return dot.getId();  }    /**   * 資源圖片轉Drawable   *   * @param context 上下文   * @param resId  資源ID   * @return 返回Drawable圖像   */  public static Drawable fromResToDrawable(Context context, int resId) {    return ContextCompat.getDrawable(context, resId);  }   /**   * 添加多個輪播小點到橫向線性布局   *   * @param linearLayout 線性橫向布局   * @param backgount  小點資源圖標   * @param number    數量   * @return 返回小點View集合   */  private List<View> addDots(final LinearLayout linearLayout, Drawable backgount, int number) {    List<View> dots = new ArrayList<>();    for (int i = 2; i < number; i++) {  // 注意這里的 i 從 2 開始，只畫出5個點       int dotId = addDot(linearLayout, backgount);      dots.add(findViewById(dotId));     }    return dots;  }  }

ic_dot_focused.xml：

<vector android:height="5dp" android:viewportHeight="24.0"  android:viewportWidth="24.0" android:width="5dp" xmlns:android="http://schemas.android.com/apk/res/android">  <path android:fillColor="#c8ffffff" android:pathData="M12,12m-8,0a8,8 0,1 1,16 0a8,8 0,1 1,-16 0"/></vector>

ic_dot_normal.xml：

<vector android:height="5dp" android:viewportHeight="24.0"  android:viewportWidth="24.0" android:width="5dp" xmlns:android="http://schemas.android.com/apk/res/android">  <path android:fillColor="#c8fd8888" android:pathData="M12,12m-8,0a8,8 0,1 1,16 0a8,8 0,1 1,-16 0"/></vector>

當然這里主要是實現真正的無限輪播，其中對于用戶手動滑動圖片時需要暫停輪播沒有做相關處理。
