前言

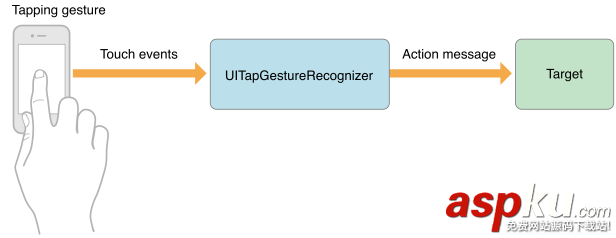

在iOS中，你可以使用系統內置的手勢識別(GestureRecognizer)，也可以創建自己的手勢.GestureRecognizer將低級別的轉換為高級別的執行行為，是你綁定到view的對象，當發生手勢，綁定到的view對象會響應，它確定這個動作是否對應一個特定的手勢(swipe，pinch，pan,rotation).如果它能識別這個手勢，那么就會向綁定它的view發送消息，如下圖

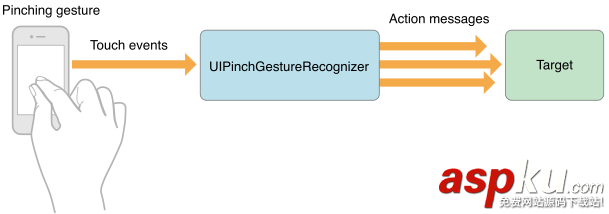

UIKit框架提供了一些預定義的GestureRecognizer.包含下列手勢
如果你想讓你的應用程序來識別一個獨特的手勢,如選擇目錄或糾結的運動,你可以創建自己的自定義GestureRecognizer，將在下篇介紹
將特定的手勢和view相關聯
每一個特定的手勢必須關聯到view對象中才會有作用，一個view對象可以關聯多個不同的特定手勢，但是每一個特定的手勢只能與一個view相關聯。當用戶觸摸了view，這個GestureRecognizer就會接受到消息，它可以響應特定的觸摸事件。
與特定view關聯
可以使用removeGestureRecognizer: 來移除手勢。
_panGestureRecognizer = [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(handlerPanGesture:)]; _panGestureRecognizer.delegate = self; _panGestureRecognizer.maximumNumberOfTouches = 2; _panGestureRecognizer.minimumNumberOfTouches = 2; [self.view addGestureRecognizer:_panGestureRecognizer];- (void)handlerPanGesture:(UIPanGestureRecognizer *)recognizer{ if ((recognizer.state == UIGestureRecognizerStateBegan) || (recognizer.state == UIGestureRecognizerStateChanged)) { CGPoint offset = [recognizer translationInView:self.view]; CGRect frame = self.rightViewController.view.frame; frame.origin.x += offset.x; if (frame.origin.x >= 0 && frame.origin.x <= kScreenWidth) { self.rightViewController.view.frame = frame; } [recognizer setTranslation:CGPointZero inView:self.view]; } else if (recognizer.state == UIGestureRecognizerStateEnded) { BOOL isVisible = self.rightViewController.view.frame.origin.x < kScreenWidth / 2; [self showRightView:isVisible]; }} 手勢識別狀態

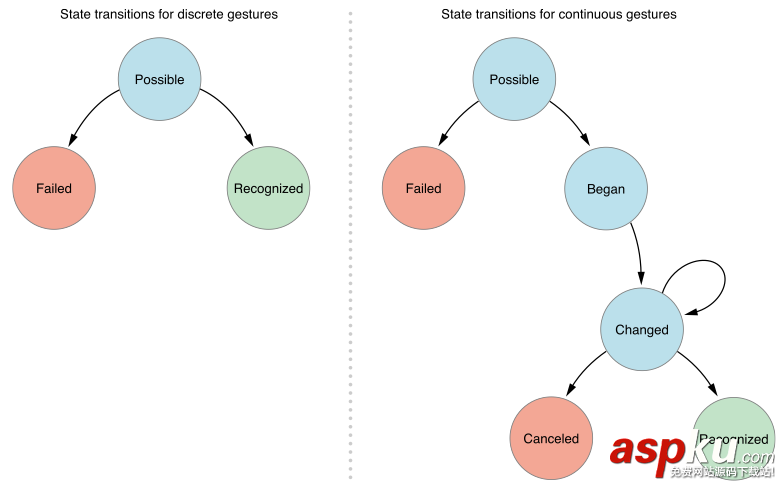

Gesture recognizers從一個狀態轉到另一狀態(state)。對于每個狀態，根據它們是否符合特定條件來決定時候可以移動到下一個狀態。它們分析多點觸摸。是否識別失敗。未能識別手勢意味著state 轉換失敗。UIGestureRecognizerStateFailed。詳見UIGestureRecognizerState枚舉
typedef NS_ENUM(NSInteger, UIGestureRecognizerState) { UIGestureRecognizerStatePossible, // the recognizer has not yet recognized its gesture, but may be evaluating touch events. this is the default state UIGestureRecognizerStateBegan, // the recognizer has received touches recognized as the gesture. the action method will be called at the next turn of the run loop UIGestureRecognizerStateChanged, // the recognizer has received touches recognized as a change to the gesture. the action method will be called at the next turn of the run loop UIGestureRecognizerStateEnded, // the recognizer has received touches recognized as the end of the gesture. the action method will be called at the next turn of the run loop and the recognizer will be reset to UIGestureRecognizerStatePossible UIGestureRecognizerStateCancelled, // the recognizer has received touches resulting in the cancellation of the gesture. the action method will be called at the next turn of the run loop. the recognizer will be reset to UIGestureRecognizerStatePossible UIGestureRecognizerStateFailed, // the recognizer has received a touch sequence that can not be recognized as the gesture. the action method will not be called and the recognizer will be reset to UIGestureRecognizerStatePossible // Discrete Gestures – gesture recognizers that recognize a discrete event but do not report changes (for example, a tap) do not transition through the Began and Changed states and can not fail or be cancelled UIGestureRecognizerStateRecognized = UIGestureRecognizerStateEnded // the recognizer has received touches recognized as the gesture. the action method will be called at the next turn of the run loop and the recognizer will be reset to UIGestureRecognizerStatePossible};為view添加多個手勢
當一個view添加多個手勢時，在缺省情況下，沒有為優先執行哪個手勢做排序，每次發生不同。不過你可以覆蓋默認的行為（使用類方法、委托方法、和子類化覆蓋這些）
指定一個Gesture recognizers應該在另一個前捕捉。
requireGestureRecognizerToFail: 這個方法就是在作為參數的Gesture recognizer失敗以后接受者才發生，否則從不會發生。
[self.panRecognizer requireGestureRecognizerToFail:self.swipeRecognizer];
允許2個手勢同時操作
gestureRecognizer:shouldRecognizeSimultaneouslyWithGestureRecognizer:
禁止在某一點發生Gesture recognizers
- (BOOL)gestureRecognizer:(UIGestureRecognizer *)gestureRecognizer shouldReceiveTouch:(UITouch *)touch{ if ([touch.view isKindOfClass:[UIControl class]]) { return NO; } return YES;}指定一個單向關系兩個手勢識別器
想控制兩個識別器相互作用，但你需要指定一個單向關系,您可以重寫或canPreventGestureRecognizer:或canBePreventedByGestureRecognizer:子類方法。return yes。例如,如果你想要一個旋轉的姿態來防止捏動作,但你不想夾手勢防止旋轉的姿態。例如，你想一個旋轉手勢阻止一個縮放手勢，但你不想一個縮放手勢阻止旋轉手勢，就加入下面代碼
[rotationGestureRecognizer canPreventGestureRecognizer:pinchGestureRecognizer];
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持VEVB武林網。
