iOS新功能引導提示界面實例詳解

2019-10-21 18:46:47

字體：大中小

供稿：網友

在開發中，現在很多app更新了新功能時都會給出用戶一個提示，以方便用戶更好的體驗，那么這個功能如何實現的呢？

首先看下效果圖：

ios,新功能引導提示

1.首先創建第一個viewcontroller 在上面放上一個imageview和一個按鈕

- (void)viewDidLoad {  [super viewDidLoad];  // Do any additional setup after loading the view.  UIImageView *imageview=[[UIImageView alloc]init];  imageview.frame=CGRectMake(0, 0, self.view.frame.size.width, self.view.frame.size.height);  imageview.image=[UIImage imageNamed:@"girl.png"];  [self.view addSubview:imageview];  UIButton *Btn=[[UIButton alloc]init];  Btn.frame=CGRectMake(20, 100, 50, 50);  Btn.backgroundColor=[UIColor blueColor];  [Btn addTarget:self action:@selector(btnclick) forControlEvents:UIControlEventTouchUpInside];  [imageview addSubview:Btn];  imageview.userInteractionEnabled=YES;}-(void)btnclick{  BackViewController *backVc=[[BackViewController alloc]init];  [self presentViewController:backVc animated:YES completion:nil];}

2.這時候我們?cè)趧?chuàng)建一個BackViewController 設置透明即可

- (instancetype)init{  self = [super init];  if (self) {    self.view.backgroundColor=[UIColor colorWithWhite:0 alpha:0.4];    self.modalTransitionStyle = UIModalTransitionStyleCrossDissolve;    self.modalPresentationStyle = UIModalPresentationOverFullScreen;  }  return self;}

這里提示一點，很多時候我們對視圖直接設置alpha屬性的值會導致其子控件也變得半透明，而通常我們的需求是：背景半透明而其子控件不透明。

因此我們可以用一下方法設置透明度

//只設置黑白背景色 white后面的參數表示灰度，從0-1之間表示從黑到白的變化，alpha就是你想調整的透明度。  blackV.backgroundColor = [UIColor colorWithWhite:0.f alpha:0.7]; //設置任意顏色的背景色blackV.backgroundColor = [UIColor colorWithRed:122/255.0 green:123/255.0 blue:234/255.0 alpha:0.7]; UIColor *color = [UIColor blackColor];bgView.backgroundColor = [color colorWithAlphaComponent:0.5];

3.設置BackViewController上面的控件

- (void)viewDidLoad {  [super viewDidLoad];  UIButton *btn=[UIButton buttonWithType:UIButtonTypeCustom];  btn.frame=CGRectMake(50, 300, 50, 50);//  btn.backgroundColor=[UIColor blueColor];  [self.view addSubview:btn];  [btn setBackgroundImage:[UIImage imageNamed:@"userGuideBtnBG_unClear.png"] forState:UIControlStateNormal];  [btn addTarget:self action:@selector(btnclick) forControlEvents:UIControlEventTouchUpInside];  btn.backgroundColor=[UIColor clearColor];  btn.alpha=0.75;  UIView *view1=[[UIView alloc]init];  view1.backgroundColor=[UIColor blackColor];  view1.alpha=0.75;  [self.view addSubview:view1];  view1.frame=CGRectMake(0, 0, self.view.frame.size.width, 300);  UIView *view2=[[UIView alloc]init];  view2.backgroundColor=[UIColor blackColor];  view2.alpha=0.75;  [self.view addSubview:view2];  view2.frame=CGRectMake(0, 300+50, self.view.frame.size.width, self.view.frame.size.height-50-300);  UIView *view3=[[UIView alloc]init];  view3.backgroundColor=[UIColor blackColor];  view3.alpha=0.75;  [self.view addSubview:view3];  view3.frame=CGRectMake(0, 300, 50, 50);  UIView *view4=[[UIView alloc]init];  view4.backgroundColor=[UIColor blackColor];  view4.alpha=0.75;  [self.view addSubview:view4];  view4.frame=CGRectMake(50+50, 300, self.view.frame.size.width-50-50, 50);  UILabel *titlelabel=[[UILabel alloc]init];  titlelabel.frame=CGRectMake(100, 350,100,50 );  [self.view addSubview:titlelabel];  titlelabel.text=@"這是新功能";  titlelabel.textColor=[UIColor whiteColor];}-(void)btnclick{  [self dismissViewControllerAnimated:YES completion:nil];}

原理很簡單，我們present出來一個透明的控制器，這樣在控制器上面放上幾個深度alpha的view和一個btn，哦，還需要一個label提示文字，也可以自己再添加一些箭頭什么的，當然這個btn時美工扣圖處理之后給你的，然后通過改變它們的frame來實現不同位置的提示。因?yàn)槭亲龅膁emo所以我用了frame，我建議用autolayout去定它們之間的關系，然后用transform來實現移動frame，然后可以提示多個新功能。

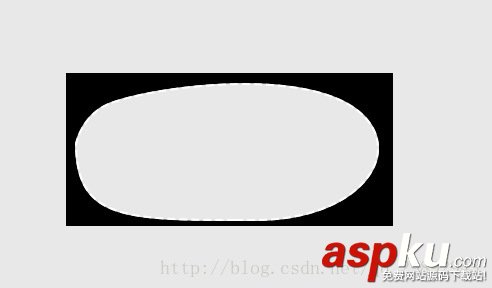

btn摳圖之后的效果：

ios,新功能引導提示
