body{background:pink;text-align: center;}

<meta name="viewport" content="width=device-width,initial-scale=1.0,user-scalable=no">

<script src="index.js"></script>

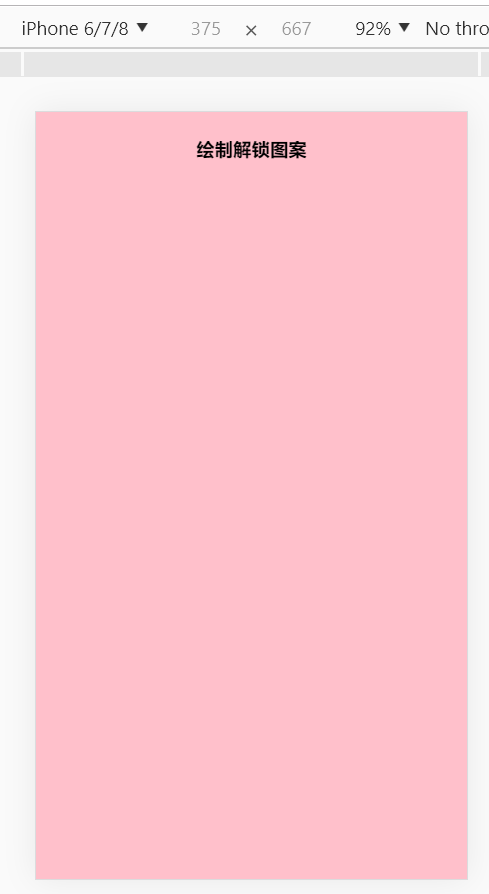

// 匿名函數自執行(function(){    // canvasLock是全局對象    window.canvasLock=function(obj){        this.width=obj.width;        this.height=obj.height;    }    //動態生成DOM    canvasLock.prototype.initDom=function(){        //創建一個div        var div=document.createElement("div");        var h4="<h4 id='title' class='title'>繪制解鎖圖案</h4>";        div.innerHTML=h4;        div.setAttribute("style","position:absolute;top:0;left:0;right:0;bottom:0;");        //創建canvas        var canvas=document.createElement("canvas");        canvas.setAttribute("id","canvas");        //cssText 的本質就是設置 HTML 元素的 style 屬性值        canvas.style.cssText="background:pink;display:inine-block;margin-top:15px;";        div.appendChild(canvas);        document.body.appendChild(div);        //設置canvas默認寬高        var width=this.width||300;        var height=this.height||300;        canvas.style.width=width+"px";        canvas.style.height=height+"px";        canvas.width=width;        canvas.height=height;    }        //init代表初始化，程序的入口    canvasLock.prototype.init=function(){        //動態生成DOM        this.initDom();        //創建畫布        this.canvas=document.getElementById("canvas");        this.ctx=this.canvas.getContext("2d");    }})();

new canvasLock({}).init();

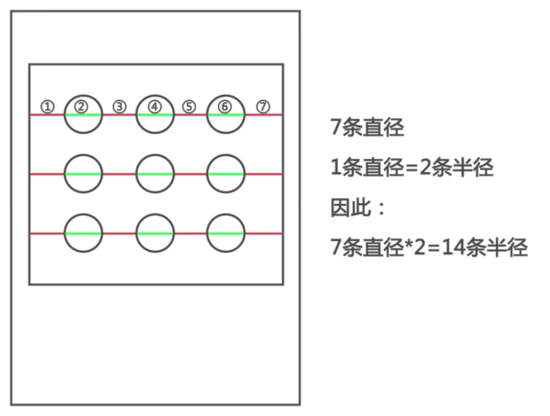

//以給定坐標點為圓心畫出單個圓    canvasLock.prototype.drawCircle=function(x,y){        this.ctx.strokeStyle="#abcdef";        this.ctx.lineWidth=2;        this.ctx.beginPath();        this.ctx.arc(x,y,this.r,0,2*Math.PI,true);        this.ctx.closePath();        this.ctx.stroke();    }        //繪制出所有的圓    canvasLock.prototype.createCircle=function(){        var n=this.circleNum;//一行幾個圓        var count=0;        this.r=this.canvas.width/(4*n+2);//公式計算出每個圓的半徑        this.lastPoint=[];//儲存點擊過的圓的信息        this.arr=[];//儲存所有圓的信息        this.restPoint=[];//儲存未被點擊的圓的信息        var r=this.r;        for(var i=0;i<n;i++){            for(var j=0;j<n;j++){                count++;                var obj={                    x:(4*j+3)*r,                    y:(4*i+3)*r,                    index:count//給每個圓標記索引                };                this.arr.push(obj);                this.restPoint.push(obj);//初始化時為所有點            }        }        //清屏        this.ctx.clearRect(0,0,this.canvas.width,this.canvas.height);        //以給定坐標點為圓心畫出所有圓        for(var i=0;i<this.arr.length;i++){            //循環調用畫單個圓的方法            this.drawCircle(this.arr[i].x,this.arr[i].y);        }    }

canvasLock.prototype.init=function(){        //動態生成DOM        this.initDom();        //創建畫布        this.canvas=document.getElementById("canvas");        this.ctx=this.canvas.getContext("2d");        //繪制出所有的圓        this.createCircle();    }

new canvasLock({circleNum:3}).init();

canvasLock.prototype.getPosition=function(e){        var rect=e.currentTarget.getBoundingClientRect();//獲得canvas距離屏幕的上下左右距離        var po={            //鼠標與視口的左距離 - canvas距離視口的左距離 = 鼠標與canvas的左距離            x:(e.touches[0].clientX-rect.left),            //鼠標與視口的上距離 - canvas距離視口的上距離 = 鼠標距離canvas的上距離            y:(e.touches[0].clientY-rect.top)        };        return po;    }

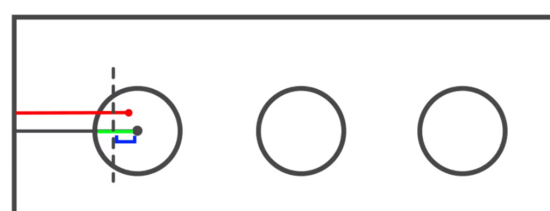

this.canvas.addEventListener("touchstart",function(e){            var po=self.getPosition(e);//鼠標距離canvas的距離            //判斷是否在圓內            for(var i=0;i<self.arr.lenth;i++){                if(Math.abs(po.x-self.arr[i].x)<self.r && Math.abs(po.y-self.arr[i].y)<self.r){                    self.touchFlag=true;//允許拖拽                    self.lastPoint.push(self.arr[i]);//點擊過的點                    self.restPoint.splice(i,1);//剩下的點剔除這個被點擊的點                    break;                }            }        },false);

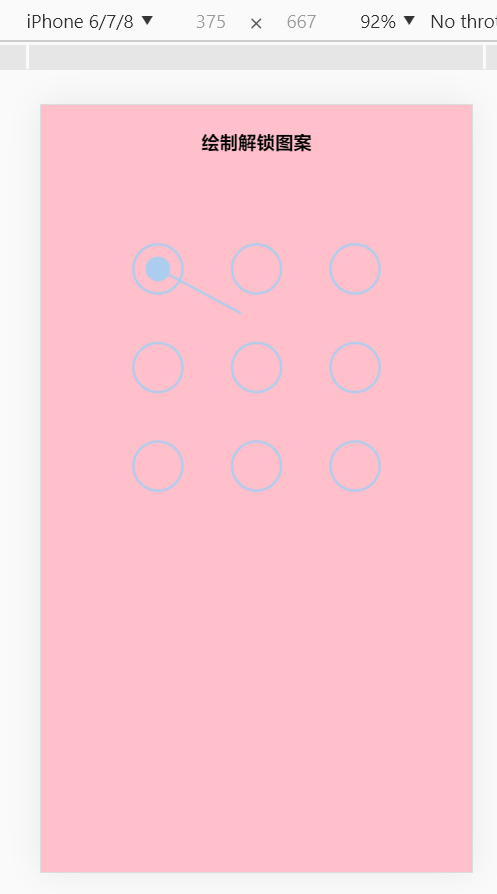

//觸摸點移動時的動畫    canvasLock.prototype.update=function(po){        //清屏，canvas動畫前必須清空原來的內容        this.ctx.clearRect(0,0,this.canvas.width,this.canvas.height);        //以給定坐標點為圓心畫出所有圓        for(var i=0;i<this.arr.length;i++){            this.drawCircle(this.arr[i].x,this.arr[i].y);        }        this.drawPoint();//點擊過的圓畫實心圓        this.drawLine(po);//畫線    }    //畫實心圓    canvasLock.prototype.drawPoint=function(){        for(var i=0;i<this.lastPoint.length;i++){            this.ctx.fillStyle="#abcdef";            this.ctx.beginPath();            this.ctx.arc(this.lastPoint[i].x,this.lastPoint[i].y,this.r/2,0,2*Math.PI,true);            this.ctx.closePath();            this.ctx.fill();        }    }    //畫線    canvasLock.prototype.drawLine=function(po){        this.ctx.beginPath();        this.lineWidth=3;        this.ctx.moveTo(this.lastPoint[0].x,this.lastPoint[0].y);//線條起點        for(var i=1;i<this.lastPoint.length;i++){            this.ctx.lineTo(this.lastPoint[i].x,this.lastPoint[i].y);        }        this.ctx.lineTo(po.x,po.y);//觸摸點        this.ctx.stroke();        this.ctx.closePath();    }

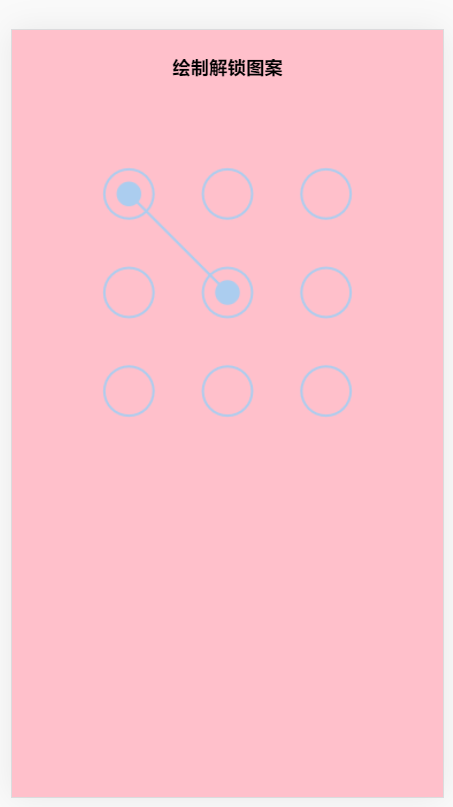

//碰到下一個圓時只需要push到lastPoint當中去        for(var i=0;i<this.restPoint.length;i++){            if((Math.abs(po.x-this.restPoint[i].x)<this.r) && (Math.abs(po.y-this.restPoint[i].y)<this.r)){                this.lastPoint.push(this.restPoint[i]);//將這個新點擊到的點存入lastPoint                this.restPoint.splice(i,1);//從restPoint中剔除這個新點擊到的點                break;            }        }

//設置密碼    canvasLock.prototype.storePass=function(){        if(this.checkPass()){            document.getElementById("title").innerHTML="解鎖成功";            this.drawStatusPoint("lightgreen");        }else{            document.getElementById("title").innerHTML="解鎖失敗";            this.drawStatusPoint("orange");        }    }    //判斷輸入的密碼    canvasLock.prototype.checkPass=function(){        var p1="123",//成功的密碼            p2="";        for(var i=0;i<this.lastPoint.length;i++){            p2+=this.lastPoint[i].index;        }        return p1===p2;    }    //繪制判斷結束后的狀態    canvasLock.prototype.drawStatusPoint=function(type){        for(var i=0;i<this.lastPoint.length;i++){            this.ctx.strokeStyle=type;            this.ctx.beginPath();            this.ctx.arc(this.lastPoint[i].x,this.lastPoint[i].y,this.r,0,2*Math.PI,true);            this.ctx.closePath();            this.ctx.stroke();        }    }    //程序全部結束后重置    canvasLock.prototype.reset=function(){        this.createCircle();    }

<!DOCTYPE html><html lang="en"><head>    <meta charset="UTF-8">    <title>手勢解鎖</title>    <!-- 移動端meta頭 -->    <meta name="viewport" content="width=device-width,initial-scale=1.0,user-scalable=no">    <style>           body{background:pink;text-align: center;}    </style></head><body>    <script src="index.js"></script>    <script>        // circleNum:3 表示一行3個圓        new canvasLock({circleNum:3}).init();    </script>  </body></html>

// 匿名函數自執行(function(){    // canvasLock是全局對象    window.canvasLock=function(obj){        this.width=obj.width;        this.height=obj.height;        this.circleNum=obj.circleNum;    }    //動態生成DOM    canvasLock.prototype.initDom=function(){        //創建一個div        var div=document.createElement("div");        var h4="<h4 id='title' class='title'>繪制解鎖圖案</h4>";        div.innerHTML=h4;        div.setAttribute("style","position:absolute;top:0;left:0;right:0;bottom:0;");        //創建canvas        var canvas=document.createElement("canvas");        canvas.setAttribute("id","canvas");        //cssText 的本質就是設置 HTML 元素的 style 屬性值        canvas.style.cssText="background:pink;display:inine-block;margin-top:15px;";        div.appendChild(canvas);        document.body.appendChild(div);        //設置canvas默認寬高        var width=this.width||300;        var height=this.height||300;        canvas.style.width=width+"px";        canvas.style.height=height+"px";        canvas.width=width;        canvas.height=height;    }    //以給定坐標點為圓心畫出單個圓    canvasLock.prototype.drawCircle=function(x,y){        this.ctx.strokeStyle="#abcdef";        this.ctx.lineWidth=2;        this.ctx.beginPath();        this.ctx.arc(x,y,this.r,0,2*Math.PI,true);        this.ctx.closePath();        this.ctx.stroke();    }        //繪制出所有的圓    canvasLock.prototype.createCircle=function(){        var n=this.circleNum;//一行幾個圓        var count=0;        this.r=this.canvas.width/(4*n+2);//公式計算出每個圓的半徑        this.lastPoint=[];//儲存點擊過的圓的信息        this.arr=[];//儲存所有圓的信息        this.restPoint=[];//儲存未被點擊的圓的信息        var r=this.r;        for(var i=0;i<n;i++){            for(var j=0;j<n;j++){                count++;                var obj={                    x:(4*j+3)*r,                    y:(4*i+3)*r,                    index:count//給每個圓標記索引                };                this.arr.push(obj);                this.restPoint.push(obj);//初始化時為所有點            }        }        //清屏        this.ctx.clearRect(0,0,this.canvas.width,this.canvas.height);        //以給定坐標點為圓心畫出所有圓        for(var i=0;i<this.arr.length;i++){            //循環調用畫單個圓的方法            this.drawCircle(this.arr[i].x,this.arr[i].y);        }    }    //添加事件    canvasLock.prototype.bindEvent=function(){        var self=this;        this.canvas.addEventListener("touchstart",function(e){            var po=self.getPosition(e);//鼠標距離canvas的距離            //判斷是否在圓內            for(var i=0;i<self.arr.length;i++){                if((Math.abs(po.x-self.arr[i].x)<self.r) && (Math.abs(po.y-self.arr[i].y)<self.r)){                    self.touchFlag=true;//允許拖拽                    self.lastPoint.push(self.arr[i]);//點擊過的點                    self.restPoint.splice(i,1);//剩下的點剔除這個被點擊的點                    break;                }            }        },false);        this.canvas.addEventListener("touchmove",function(e){            if(self.touchFlag){                //觸摸點移動時的動畫                self.update(self.getPosition(e));            }        },false);        //觸摸離開時        this.canvas.addEventListener("touchend",function(e){            if(self.touchFlag){                self.storePass(self.lastPoint);                setTimeout(function(){                    self.reset();                },300);            }        },false);    }    //設置密碼    canvasLock.prototype.storePass=function(){        if(this.checkPass()){            document.getElementById("title").innerHTML="解鎖成功";            this.drawStatusPoint("lightgreen");        }else{            document.getElementById("title").innerHTML="解鎖失敗";            this.drawStatusPoint("orange");        }    }    //判斷輸入的密碼    canvasLock.prototype.checkPass=function(){        var p1="123",//成功的密碼            p2="";        for(var i=0;i<this.lastPoint.length;i++){            p2+=this.lastPoint[i].index;        }        return p1===p2;    }    //繪制判斷結束后的狀態    canvasLock.prototype.drawStatusPoint=function(type){        for(var i=0;i<this.lastPoint.length;i++){            this.ctx.strokeStyle=type;            this.ctx.beginPath();            this.ctx.arc(this.lastPoint[i].x,this.lastPoint[i].y,this.r,0,2*Math.PI,true);            this.ctx.closePath();            this.ctx.stroke();        }    }    //程序全部結束后重置    canvasLock.prototype.reset=function(){        this.createCircle();    }        //獲取鼠標點擊處離canvas的距離    canvasLock.prototype.getPosition=function(e){        var rect=e.currentTarget.getBoundingClientRect();//獲得canvas距離屏幕的上下左右距離        var po={            //鼠標與視口的左距離 - canvas距離視口的左距離 = 鼠標與canvas的左距離            x:(e.touches[0].clientX-rect.left),            //鼠標與視口的上距離 - canvas距離視口的上距離 = 鼠標距離canvas的上距離            y:(e.touches[0].clientY-rect.top)        };        return po;    }    //觸摸點移動時的動畫    canvasLock.prototype.update=function(po){        //清屏，canvas動畫前必須清空原來的內容        this.ctx.clearRect(0,0,this.canvas.width,this.canvas.height);        //以給定坐標點為圓心畫出所有圓        for(var i=0;i<this.arr.length;i++){            this.drawCircle(this.arr[i].x,this.arr[i].y);        }        // 鼠標每移動一下都會重繪canvas,update操作相當于每一個move事件都會觸發        this.drawPoint();//點擊過的圓畫實心圓        this.drawLine(po);//畫線        //碰到下一個圓時只需要push到lastPoint當中去        for(var i=0;i<this.restPoint.length;i++){            if((Math.abs(po.x-this.restPoint[i].x)<this.r) && (Math.abs(po.y-this.restPoint[i].y)<this.r)){                this.lastPoint.push(this.restPoint[i]);//將這個新點擊到的點存入lastPoint                this.restPoint.splice(i,1);//從restPoint中剔除這個新點擊到的點                break;            }        }    }    //畫實心圓    canvasLock.prototype.drawPoint=function(){        for(var i=0;i<this.lastPoint.length;i++){            this.ctx.fillStyle="#abcdef";            this.ctx.beginPath();            this.ctx.arc(this.lastPoint[i].x,this.lastPoint[i].y,this.r/2,0,2*Math.PI,true);            this.ctx.closePath();            this.ctx.fill();        }    }    //畫線    canvasLock.prototype.drawLine=function(po){        this.ctx.beginPath();        this.lineWidth=3;        this.ctx.moveTo(this.lastPoint[0].x,this.lastPoint[0].y);//線條起點        for(var i=1;i<this.lastPoint.length;i++){            this.ctx.lineTo(this.lastPoint[i].x,this.lastPoint[i].y);        }        this.ctx.lineTo(po.x,po.y);//觸摸點        this.ctx.stroke();        this.ctx.closePath();    }    //init代表初始化，程序的入口    canvasLock.prototype.init=function(){        //動態生成DOM        this.initDom();        //創建畫布        this.canvas=document.getElementById("canvas");        this.ctx=this.canvas.getContext("2d");        //默認不允許拖拽        this.touchFlag=false;        //繪制出所有的圓        this.createCircle();        //添加事件        this.bindEvent();    }})();
