＜?xml version="1.0" encoding="utf-8" ?> ＜?eclipse version="3.0"?> ＜plugin id="org.eclipse.draw2d" name="draw2d" version="3.0.0" provider-name="eclipse.org"> ＜runtime> ＜library name="draw2d.jar"> ＜export name="*" /> ＜packages prefixes="org.eclipse.draw2d" /> ＜/library> ＜/runtime> ＜requires> ＜import plugin="org.eclipse.swt" export="true" /> ＜import plugin="org.eclipse.core.runtime" /> ＜/requires> ＜/plugin>
程序員通常會將第二個地方稱為 links 文件夾。這個 links 文件夾中包含 0 個或多個文件，文件名通常都是以 “.link” 擴展名結尾。這些文件中包含了一些鏈接信息，可以使用這些信息定位在磁盤上哪些地方可以找到鏈接插件。
每個 .link 文件都有一個關鍵字-值對，其格式為 path=location。（例如，links 文件夾 c:/eclipse/links 中就可能會有很多 .link 文件，其中一個文件的名字可能為 com.ibm.indiver.dependencywalker.link。這個文件中唯一的一行可能類似于 path=c:/myplugins/dependencywalker）。這個 .link 文件會將 eclipse 引導到指定的位置，并在 /eclipse/plugins 文件夾中尋找更多的可用插件。
創建自己的 eclipse 插件依賴性遍歷程序
編寫一個依賴性遍歷程序基本上分為兩個步驟：首先羅列出所有插件，其次羅列出用戶所選擇的插件的依賴性。
第一個步驟要負責定位 eclipse 系統中出現的每個插件，并在一個簡單的用戶界面（ui）—— 例如表 —— 中為終端用戶提供所有插件的清單。這個 ui 還應該為用戶提供一些方法來選擇希望解析其依賴性的插件。

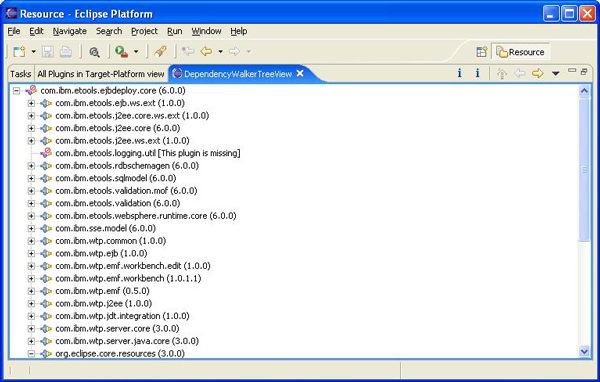

第二個步驟則要對用戶選擇的插件的 plugin.xml 文件進行分析，并查找這個 plugin.xml 文件中嵌入的 ＜import plugin="plugin id"/> 聲明。這種努力顯然需要對每個插件的 manifest 文件進行遞歸搜索，從而查明依賴插件的整個鏈條。對于描述這個插件可能依賴于其他插件的父-兄-子關系，樹狀視圖是最合適的一種 ui。我們還應該可以直觀地看出某個 eclipse 插件注冊項是否真正加載了一個物理存在的插件。
步驟 1：羅列 eclipse 系統中的所有插件
在掌握了以下信息之后，就可以編寫一些代碼來羅列磁盤上物理存在的所有插件了：
下面是羅列 eclipse 系統中所有插件的詳細步驟：
清單 2. 準備在 eclipse 系統下物理存在的所有插件的清單
/** * * @return returns a vector containing plugindata objects. * each plugindata object represents a plugin found under any of the following * plugin directories * a. the targetplatformlocation/eclipse/plugins directory, * b. other plugin directories as specified by *.link files under * targetplatform/eclipse/links directory **/ public static vector getpluginsintargetplatform(){ /** //step1: get path of target platform. //step2: prepare path of links folder. //step3: get list of files in links folder. //step4: parse each link file and get the path of linked eclipse folder. //step5: prepare a list of all plugin root folders // (eclipse plugins and linked eclipse plugins). //step6: 6a. for each plugin root folder, // 6b. go to each plugin directory and get path of plugin.xml. //step7: parse the plugin.xml file to get plugin id, plugin version, // and store in vectors, lists, etc. //step8: go back to step 6 to continue with next plugin directory. **/ //step1: get path of target platform. //fall back to eclipse install location if targetplatform in not set. url platformurl = platform.getinstalllocation().geturl(); location location = platform.getinstalllocation(); ipath eclipsepath = null ; //get path of target platform against which the users of this tool //will compile their code. ipath targetplatformlocation = new path(gettargetplatformpath(true)); if(_usetargetplatform == false) eclipsepath = new path(platformurl.getpath()); else eclipsepath = targetplatformlocation; showmessage("considering target platform to be: " + eclipsepath.tostring()); //step2: prepare path of links folder. //step3: get list of files in links folder. //step4: parse each link file and get the path of linked eclipse folder. ipath linkspath = new path( eclipsepath.tostring() ).append("/links"); string linkedpaths[] = getlinkedpaths(linkspath.tostring()); int linkedpathlength = 0; if(null != linkedpaths){ linkedpathlength = linkedpaths.length; } //step5: prepare a list of all plugin root folders // (eclipse plugins and linked eclipse plugins). ipath eclipsepluginrootfolders[] = new ipath[linkedpathlength + 1]; eclipsepluginrootfolders[0] = new path( eclipsepath.tostring() ).append("/plugins"); if(null != linkedpaths){ for(int i=0; i＜linkedpaths.length; i++){ eclipsepluginrootfolders[i+1] = new path(linkedpaths[i]).append("/eclipse/plugins"); } } //step6: 6a. for each plugin root folder, // 6b. go to each plugin directory and get path of plugin.xml. //step7: parse the plugin.xml file to get plugin id, plugin version, // and store in vectors, lists, etc. vector vectorsinthisvector = new vector(); for(int i=0; i＜eclipsepluginrootfolders.length; i++){ system.out.println("/n========plugin ids and versions in " + eclipsepluginrootfolders[i] + "========"); vector plugindataobjs = getplugindataforallplugins( eclipsepluginrootfolders[i].tostring()); vectorsinthisvector.add(plugindataobjs); system.out.println(plugindataobjs); system.out.println("/n===========|||=== end ===|||==========="); } vector plugindata = new vector(); iterator outeriterator = vectorsinthisvector.iterator(); while(outeriterator.hasnext()){ vector plugindataobjs = (vector)outeriterator.next(); iterator inneriterator = plugindataobjs.iterator(); while(inneriterator.hasnext()){ plugindata pd = (plugindata)inneriterator.next(); string pluginidkey = pd.getpluginid(); string versionvalue = pd.getpluginversion(); string pluginpath = pd.getpluginlocation(); plugindata.add(pd); } } int breakpoint=0; return plugindata; }
當用戶選擇希望解析依賴鏈的插件之后，我們就需要對用戶所選擇的插件的 plugin.xml 文件進行分析，從而查看它的依賴性。每個依賴性都會導致檢查另外一個 plugin.xml 文件，后者又有自己的依賴性。從用戶選擇的插件開始，這個依賴鏈可以迅速導致有很多個 plugin.xml 文件需要進行分析。我們可以編寫一個遞歸函數來遍歷這些依賴性，它可以查找某個插件的最新版本（針對在相同的系統中有重復插件的情況）以及它的所有依賴性。
編寫這種遞歸函數需要執行的步驟如下所示，清單 3 給出了這個函數的源代碼。遞歸函數有時對資源的消耗量很大，而且在用戶失去耐心之前可能還沒有返回結果。另外一種選擇是編寫一個函數，只獲取用戶選擇的插件的直接依賴性清單。后一種方法請參看樣例代碼中的 loadimmediatedependencies() 函數。
清單 3. recursiveplugindependencywalker() 函數
private vector alreadynotified = new vector(); private boolean firstcall = true; private treeparent root = null; private void recursiveplugindependencywalker(plugindata pdobject, treeparent parentnode){ try { string path = pdobject.getpluginlocation(); pluginparser pp = null; file plugindotxmlfile = new file(path + "/plugin.xml"); if(plugindotxmlfile.exists()){ pp = new pluginparser(plugindotxmlfile); }else{ file fragmentdotxmlfile = new file(path + "/fragment.xml"); if(fragmentdotxmlfile.exists()){ pp = new pluginparser(fragmentdotxmlfile); }else{ return;//no plugin.xml or fragment.xml found } } string displayname = pdobject.getdisplayname(); system.out.println("/nplugin ["+ displayname + "] requires" + "/n"); string requires[] = pp.getdependencylist(); if(0 != requires.length ){ for(int i=0; i＜requires.length; i++){ system.out.println("/t" + requires[i] ); plugindata pd[] = getplugindataobjectsfrompluginid(requires[i]); plugindata nextplugin = null; switch(pd.length){ case 0: //great, we know there is //something missing nextplugin = null; break; case 1: //best case, everything will be smooth nextplugin = pd[0]; break; default: //worst case, there must be more //than 1 plugin with the same id //at different locations. string msgline1 = "plugin " + displayname + " requires " + requires[i] + "/n"; string msgline2 = "duplicate plug-ins found for id: / " " + requires[i] + "/"" + "/n continuing with higher version... " ; //it is bad to give repeated //reminders, //so remind only once per plugin id. if(! alreadynotified.contains( new string(requires[i]))){ messagedialog.openinformation(null, "dependency walker", msgline1 + msgline2); alreadynotified.add( new string(requires[i])); } //always take the better //version anyway nextplugin = getbetterversionplugin(pd); break; }//end of switch if( null != nextplugin ){ treeparent nextinline = new treeparent( nextplugin.getdisplayname(), nextplugin.isplugin loadedinregistry() ); parentnode.addchild(nextinline); recursiveplugindependencywalker( nextplugin, nextinline); }else{ treeparent nextinline = new treeparent( requires[i] + " [this plug-in is missing] ", false); parentnode.addchild(nextinline); //obviously we can't recurse //into a missing plugin... } }//end of for }else{ system.out.println("/t nothing: no further dependency /n" ); //no further dependency } } catch (exception e) { e.printstacktrace(); } } 在這種情況中，必須要確定從這兩個或更多個磁盤副本中選用哪個插件。顯然，我們所感興趣的應該是最新的插件，也就是說，版本較新的插件。我們可以利用現有的一些函數來對 eclipse 插件的版本進行比較，或者可以基于清單 4 所示的樣例代碼編寫一個簡單的函數來對插件版本進行比較。
清單 4. 比較插件版本
private plugindata getbetterversionplugin(plugindata pdo[]){ plugindata _pdobjs[] = pdo; int len = pdo.length; if(len==0) return null; arrays.sort(_pdobjs,new comparator() { /**compares its two arguments for order. * returns a negative integer, zero, or a positive integer * as the first argument is less than, equal to, or greater than * the second. **/ public int compare(object leftobj, object riteobj) { string leftpid = ((plugindata)leftobj). getpluginversion().replace('.', ':'); string ritepid = ((plugindata)riteobj). getpluginversion().replace('.', ':'); string leftid[] = leftpid.split(":"); string riteid[] = ritepid.split(":"); int maxlen = leftid.length > riteid.length ? leftid.length : riteid.length; for(int i=0; i＜maxlen; i++){ int left = 0; int rite = 0; try { left = new integer(leftid[i]).intvalue(); } catch (nullpointerexception e) { left = 0; } try { rite = new integer(riteid[i]).intvalue(); } catch (nullpointerexception e) { rite = 0; } if(left==rite){ continue; }else{ int bigger = left > rite ? left : rite; if(bigger==left) return 1; if(bigger==rite) return -1; } } return 0; } public boolean equals(object arg0) { return false; } }); return _pdobjs[len-1]; }
