rip協議的V1和V2的更新機制

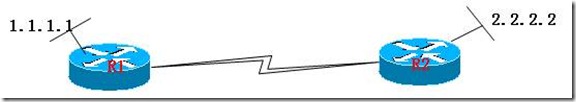

實驗拓撲：

實驗步驟：

R1:

router rip

network 1.0.0.0

network 192.168.12.0

R2:

router rip

network 2.0.0.0

network 192.168.12.0

如果沒有在路由配置模式下，敲命令Version 2的話，運行的是RIP version 1版本。

在R2上debug ip rip

R2(config)#router rip

R2(config-router)# network 2.0.0.0

R2(config-router)# network 192.168.12.0

R2(config-router)#

*Jun 4 09:40:46.279: RIP: add Loopback2 to RIP idb list

*Jun 4 09:40:46.279: RIP: sending request on Loopback2 to 255.255.255.255 //發送廣播更新

*Jun 4 09:40:47.099: RIP: add Serial1/0 to RIP idb list

*Jun 4 09:40:47.099: RIP: sending request on Serial1/0 to 255.255.255.255

*Jun 4 09:40:47.143: RIP: received v1 update from 192.168.12.1 on Serial1/0

*Jun 4 09:40:47.147: RIP: Update contains 1 routes

*Jun 4 09:40:48.279: RIP: sending v1 flash update to 255.255.255.255 via Loopback2 (2.2.2.2)

*Jun 4 09:40:48.279: RIP: Update contains 2 routes

*Jun 4 09:40:48.279: RIP: Update queued

*Jun 4 09:40:48.279: RIP: sending v1 flash update to 255.255.255.255 via Serial1/0 (192.168.12.2)

*Jun 4 09:40:48.279: RIP: Update contains 1 routes

*Jun 4 09:40:48.279: RIP: Update queued

*Jun 4 09:40:48.279: RIP: Update sent via Loopback2

*Jun 4 09:40:48.279: RIP: Update sent via Serial1/0

R1:

*Jun 4 09:44:47.695: RIP: sending v1 update to 255.255.255.255 via Serial1/1 (192.168.12.1)

*Jun 4 09:44:47.699: RIP: Update contains 1 routes//只向鄰居通告直接的接口地址

*Jun 4 09:44:47.699: RIP: Update queued

*Jun 4 09:44:47.699: RIP: Update sent via Serial1/1

R1#

*Jun 4 09:44:52.631: RIP: sending v1 update to 255.255.255.255 via Loopback0 (1.1.1.1)

*Jun 4 09:44:52.635: RIP: Update contains 2 routes

*Jun 4 09:44:52.635: RIP: Update queued

*Jun 4 09:44:52.635: RIP: Update sent via Loopback0//只向鄰居通告直接的接口地址

R1#

*Jun 4 09:45:13.543: RIP: sending v1 update to 255.255.255.255 via Serial1/1 (192.168.12.1)

*Jun 4 09:45:13.547: RIP: Update contains 1 routes

*Jun 4 09:45:13.547: RIP: Update queued

*Jun 4 09:45:13.547: RIP: Update sent via Serial1/1

*Jun 4 09:45:13.595: RIP: received v1 update from 192.168.12.2 on Serial1/1

*Jun 4 09:45:13.599: RIP: Update contains 1 routes

R1#

*Jun 4 09:45:20.487: RIP: sending v1 update to 255.255.255.255 via Loopback0 (1.1.1.1)

*Jun 4 09:45:20.491: RIP: Update contains 2 routes

*Jun 4 09:45:20.491: RIP: Update queued

*Jun 4 09:45:20.491: RIP: Update sent via Loopback0

紅色字體表明rip V1會每30s左右（debug信息中顯示27s）發送一次更新

如果此時在R2上添加一個loopback 0 地址為22.22.22.22/24的話，從debug ip rip events中看出：

*Jun 4 09:50:12.159: RIP: sending v1 flash update to 255.255.255.255 via Loopback0 (22.22.22.22) - suppressing null update

*Jun 4 09:50:12.163: RIP: Update sent via Loopback2

此時R1上已經有22.0.0.0的路由了

R1#show ip route rip

R 2.0.0.0/8 [120/1] via 192.168.12.2, 00:00:13, Serial1/1

R 22.0.0.0/8 [120/1] via 192.168.12.2, 00:00:13, Serial1/1

如果將R2的loopback 0端口給關閉了，此時在180s后將此條路由跳數設置為16，如果過了240s后，還沒有收到此條更新的話，這條路由將徹底在路由表中刪除！

此時將R2的RIP改為V2后，會發生什么情況呢？

*Jun 4 09:57:22.151: RIP: ignored v2 packet from 2.2.2.2 (sourced from one of our addresses)

*Jun 4 09:57:24.467: RIP: ignored v1 packet from 192.168.12.1 (illegal version) //提示版本不兼容

*Jun 4 09:57:47.503: RIP: sending v2 update to 224.0.0.9 via Serial1/0 (192.168.12.2)

*Jun 4 09:57:47.507: RIP: Update contains 1 routes

*Jun 4 09:57:47.507: RIP: Update queued

*Jun 4 09:57:47.507: RIP: Update sent via Serial1/0

*Jun 4 09:57:50.219: RIP: sending v2 update to 224.0.0.9 via Loopback2 (2.2.2.2)

*Jun 4 09:57:50.219: RIP: Update contains 2 routes

*Jun 4 09:57:50.223: RIP: Update queued

*Jun 4 09:57:50.223: RIP: Update sent via Loopback2

*Jun 4 09:57:50.227: RIP: ignored v2 packet from 2.2.2.2 (sourced from one of our addresses)

*Jun 4 09:57:50.563: RIP: ignored v1 packet from 192.168.12.1 (illegal version)

此時要么改R1的版本，要么在R2的接口模式下修改：

interface Serial1/0

ip address 192.168.12.2 255.255.255.0

ip rip send version 1 //發送是版本1

ip rip receive version 1 //接收是版本2

debug信息顯示如下：

R2#

*Jun 4 09:59:41.907: RIP: received v1 update from 192.168.12.1 on Serial1/0

*Jun 4 09:59:41.911: RIP: Update contains 1 routes

R2#

*Jun 4 09:59:43.639: RIP: sending v1 update to 255.255.255.255 via Serial1/0 (192.168.12.2)

*Jun 4 09:59:43.639: RIP: Update contains 1 routes

*Jun 4 09:59:43.639: RIP: Update queued

*Jun 4 09:59:43.639: RIP: Update sent via Serial1/0

*Jun 4 09:59:43.663: RIP: sending v2 update to 224.0.0.9 via Loopback2 (2.2.2.2)

*Jun 4 09:59:43.663: RIP: Update contains 2 routes

*Jun 4 09:59:43.667: RIP: Update queued

*Jun 4 09:59:43.667: RIP: Update sent via Loopback2

*Jun 4 09:59:43.671: RIP: ignored v2 packet from 2.2.2.2 (sourced from one of our addresses)

R2#show ip route rip

R 1.0.0.0/8 [120/1] via 192.168.12.1, 00:00:02, Serial1/0

修改R1為版本1后在debug上看到的信息：

R1(config-router)#

*Jun 4 10:03:07.779: RIP-TIMER: sending timer on Loopback0 expired

*Jun 4 10:03:07.779: RIP: sending v2 update to 224.0.0.9 via Loopback0 (1.1.1.1)//組播發送更新

*Jun 4 10:03:07.783: RIP: Update contains 3 routes

*Jun 4 10:03:07.783: RIP: Update queued

*Jun 4 10:03:07.787: RIP: Update sent via Loopback0

*Jun 4 10:03:07.787: RIP: ignored v2 packet from 1.1.1.1 (sourced from one of our addresses)

R1(config-router)#

*Jun 4 10:03:14.519: RIP-TIMER: age timer expired

R1(config-router)#

*Jun 4 10:03:15.691: RIP: received v2 update from 192.168.12.2 on Serial1/1

*Jun 4 10:03:15.695: RIP-DB: network_update with 2.0.0.0/8 succeeds//注意與下面的紅色字體的區別。

*Jun 4 10:03:15.695: RIP-DB: adding 2.0.0.0/8 (metric 1) via 192.168.12.2 on Serial1/1 to RIP database

*Jun 4 10:03:15.699: RIP-DB: network_update with 22.0.0.0/8 succeeds

*Jun 4 10:03:15.699: RIP-DB: adding 22.0.0.0/8 (metric 1) via 192.168.12.2 on Serial1/1 to RIP database

*Jun 4 10:03:15.699: RIP: Update contains 2 routes

R1(config-router)#

*Jun 4 10:03:17.191: RIP-TIMER: sending timer on Serial1/1 expired

*Jun 4 10:03:17.191: RIP: sending v2 update to 224.0.0.9 via Serial1/1 (192.168.12.1)

*Jun 4 10:03:17.195: RIP: Update contains 1 routes

*Jun 4 10:03:17.195: RIP: Update queued

*Jun 4 10:03:17.199: RIP: Update sent via Serial1/1

在R1,R2上打了no auto-summary后 在R1上看到的debug ip rip database信息：

R1(config-router)#

*Jun 4 10:04:42.087: RIP: received v2 update from 192.168.12.2 on Serial1/1

*Jun 4 10:04:42.091: RIP-DB: network_update with 2.2.2.0/24 succeeds

*Jun 4 10:04:42.091: RIP-DB: adding 2.2.2.0/24 (metric 1) via 192.168.12.2 on Serial1/1 to RIP database

*Jun 4 10:04:42.095: RIP-DB: add 2.2.2.0/24 (metric 1) via 192.168.12.2 on Serial1/1

*Jun 4 10:04:42.095: RIP-DB: Adding new rndb entry 2.2.2.0/24

*Jun 4 10:04:42.099: RIP-DB: network_update with 22.22.22.0/24 succeeds

*Jun 4 10:04:42.099: RIP-DB: adding 22.22.22.0/24 (metric 1) via 192.168.12.2 on Serial1/1 to RIP database

*Jun 4 10:04:42.103: RIP-DB: add 22.22.22.0/24 (metric 1) via 192.168.12.2 on Serial1/1
