組合模式將對象組合成樹形結構以表示“部分-整體”的層次結構。C o m p o s i t e 使得用戶對單個對象和組合對象的使用具有一致性。
模式圖：
適用場景：
- 你想表示對象的部分-整體層次結構。
- 你希望用戶忽略組合對象與單個對象的不同，用戶將統一地使用組合結構中的所有對象。
舉例：
namespace FactoryMethod_DesignPattern{ using System; using System.Collections; abstract class Component { protected string strName; public Component(string name) { strName = name; } abstract public void Add(Component c); public abstract void DumpContents(); // other operations for delete, get, etc. } class Composite : Component { private ArrayList ComponentList = new ArrayList(); public Composite(string s) : base(s) {} override public void Add(Component c) { ComponentList.Add(c); } public override void DumpContents() { // First dump the name of this composite node Console.WriteLine("Node: {0}", strName); // Then loop through children, and get then to dump their contents foreach (Component c in ComponentList) { c.DumpContents(); } } } class Leaf : Component { public Leaf(string s) : base(s) {} override public void Add(Component c) { Console.WriteLine("Cannot add to a leaf"); } public override void DumpContents() { Console.WriteLine("Node: {0}", strName); } } /// <summary> /// Summary description for Client. /// </summary> public class Client { Component SetupTree() { // here we have to create a tree structure, // consisting of composites and leafs. Composite root = new Composite("root-composite"); Composite parentcomposite; Composite composite; Leaf leaf; parentcomposite = root; composite = new Composite("first level - first sibling - composite"); parentcomposite.Add(composite); leaf = new Leaf("first level - second sibling - leaf"); parentcomposite.Add(leaf); parentcomposite = composite; composite = new Composite("second level - first sibling - composite"); parentcomposite.Add(composite); composite = new Composite("second level - second sibling - composite"); parentcomposite.Add(composite); // we will leaf the second level - first sibling empty, and start // populating the second level - second sibling parentcomposite = composite; leaf = new Leaf("third level - first sibling - leaf"); parentcomposite.Add(leaf); leaf = new Leaf("third level - second sibling - leaf"); parentcomposite.Add(leaf); composite = new Composite("third level - third sibling - composite"); parentcomposite.Add(composite); return root; } public static int Main(string[] args) { Component component; Client c = new Client(); component = c.SetupTree(); component.DumpContents(); return 0; } }}
可以看出，Composite類型的對象可以包含其它Component類型的對象。換而言之，Composite類型對象可以含有其它的樹枝（Composite）類型或樹葉（Leaf）類型的對象。
合成模式的實現根據所實現接口的區別分為兩種形式，分別稱為安全模式和透明模式。合成模式可以不提供父對象的管理方法，但合成模式必須在合適的地方提供子對象的管理方法（諸如：add、remove、getChild等）。
透明方式
作為第一種選擇，在Component里面聲明所有的用來管理子類對象的方法，包括add（）、remove（），以及getChild（）方法。這樣做的好處是所有的構件類都有相同的接口。在客戶端看來，樹葉類對象與合成類對象的區別起碼在接口層次上消失了，客戶端可以同等同的對待所有的對象。這就是透明形式的合成模式。
這個選擇的缺點是不夠安全，因為樹葉類對象和合成類對象在本質上是有區別的。樹葉類對象不可能有下一個層次的對象，因此add（）、remove（）以及getChild（）方法沒有意義，是在編譯時期不會出錯，而只會在運行時期才會出錯。
安全方式
第二種選擇是在Composite類里面聲明所有的用來管理子類對象的方法。這樣的做法是安全的做法，因為樹葉類型的對象根本就沒有管理子類對象的方法，因此，如果客戶端對樹葉類對象使用這些方法時，程序會在編譯時期出錯。
這個選擇的缺點是不夠透明，因為樹葉類和合成類將具有不同的接口。
這兩個形式各有優缺點，需要根據軟件的具體情況做出取舍決定。
安全式的合成模式實現: 只有composite有Add ,remove,delete等方法.
以下示例性代碼演示了安全式的合成模式代碼：
// Composite pattern -- Structural example using System;using System.Text;using System.Collections;// "Component"abstract class Component{ // Fields protected string name; // Constructors public Component( string name ) { this.name = name; } // Operation public abstract void Display( int depth );}// "Composite"class Composite : Component{ // Fields private ArrayList children = new ArrayList(); // Constructors public Composite( string name ) : base( name ) {} // Methods public void Add( Component component ) { children.Add( component ); } public void Remove( Component component ) { children.Remove( component ); } public override void Display( int depth ) { Console.WriteLine( new String( '-', depth ) + name ); // Display each of the node's children foreach( Component component in children ) component.Display( depth + 2 ); }}// "Leaf"class Leaf : Component{ // Constructors public Leaf( string name ) : base( name ) {} // Methods public override void Display( int depth ) { Console.WriteLine( new String( '-', depth ) + name ); }}/// <summary>/// Client test/// </summary>public class Client{ public static void Main( string[] args ) { // Create a tree structure Composite root = new Composite( "root" ); root.Add( new Leaf( "Leaf A" )); root.Add( new Leaf( "Leaf B" )); Composite comp = new Composite( "Composite X" ); comp.Add( new Leaf( "Leaf XA" ) ); comp.Add( new Leaf( "Leaf XB" ) ); root.Add( comp ); root.Add( new Leaf( "Leaf C" )); // Add and remove a leaf Leaf l = new Leaf( "Leaf D" ); root.Add( l ); root.Remove( l ); // Recursively display nodes root.Display( 1 ); }} 透明式的合成模式實現: 每個里都有add,remove等修改方法.
以下示例性代碼演示了安全式的合成模式代碼：
// Composite pattern -- Structural example using System;using System.Text;using System.Collections;// "Component"abstract class Component{ // Fields protected string name; // Constructors public Component( string name ) { this.name = name; } // Methods abstract public void Add(Component c); abstract public void Remove( Component c ); abstract public void Display( int depth );}// "Composite"class Composite : Component{ // Fields private ArrayList children = new ArrayList(); // Constructors public Composite( string name ) : base( name ) {} // Methods public override void Add( Component component ) { children.Add( component ); } public override void Remove( Component component ) { children.Remove( component ); } public override void Display( int depth ) { Console.WriteLine( new String( '-', depth ) + name ); // Display each of the node's children foreach( Component component in children ) component.Display( depth + 2 ); }}// "Leaf"class Leaf : Component{ // Constructors public Leaf( string name ) : base( name ) {} // Methods public override void Add( Component c ) { Console.WriteLine("Cannot add to a leaf"); } public override void Remove( Component c ) { Console.WriteLine("Cannot remove from a leaf"); } public override void Display( int depth ) { Console.WriteLine( new String( '-', depth ) + name ); }}/// <summary>/// Client test/// </summary>public class Client{ public static void Main( string[] args ) { // Create a tree structure Composite root = new Composite( "root" ); root.Add( new Leaf( "Leaf A" )); root.Add( new Leaf( "Leaf B" )); Composite comp = new Composite( "Composite X" ); comp.Add( new Leaf( "Leaf XA" ) ); comp.Add( new Leaf( "Leaf XB" ) ); root.Add( comp ); root.Add( new Leaf( "Leaf C" )); // Add and remove a leaf Leaf l = new Leaf( "Leaf D" ); root.Add( l ); root.Remove( l ); // Recursively display nodes root.Display( 1 ); }} 實例

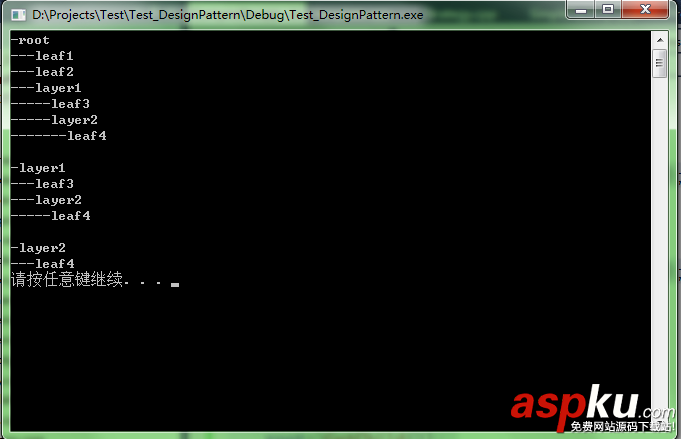

再看看一個完整些的例子：
#include <iostream> #include <string> #include <list> using namespace std; class Component { protected: string name; public: Component(string name) :name(name) { } virtual void AddComponent(Component *component) { } virtual void RemoveComponent(Component *component) { } virtual void GetChild(int depth) { } }; class Leaf: public Component { public: Leaf(string name) :Component(name) { } void AddComponent(Component *component) { cout<<"Leaf can't add component"<<endl; } void RemoveComponent(Component *component) { cout<<"Leaf can't remove component"<<endl; } void GetChild(int depth) { string _tmpstring(depth, '-'); cout<<_tmpstring<<name<<endl; } }; class Composite:public Component { private: list<Component*> _componets; public: Composite(string name) :Component(name) { } void AddComponent(Component *component) { _componets.push_back(component); } void RemoveComponent(Component *component) { _componets.remove(component); } void GetChild(int depth) { string tmpstring (depth, '-'); cout<<tmpstring<<name<<endl; list<Component*>::iterator iter = _componets.begin(); for(; iter != _componets.end(); iter++) { (*iter)->GetChild(depth + 2); } } }; int main() { Composite *root = new Composite("root"); Leaf *leaf1 = new Leaf("leaf1"); Leaf *leaf2 = new Leaf("leaf2"); root->AddComponent(leaf1); root->AddComponent(leaf2); Composite *lay2 = new Composite("layer2"); Leaf *leaf4 = new Leaf("leaf4"); lay2->AddComponent(leaf4); Composite *lay1 = new Composite("layer1"); Leaf *leaf3 = new Leaf("leaf3"); lay1->AddComponent(leaf3); lay1->AddComponent(lay2); root->AddComponent(lay1); root->GetChild(1); cout<<endl; lay1->GetChild(1); cout<<endl; lay2->GetChild(1); delete root; delete lay1; delete lay2; delete leaf1; delete leaf2; delete leaf3; delete leaf4; system("pause"); return 0; } 輸出：
