C# 實現截圖軟件功能實例代碼

2019-10-29 21:09:48
字體:
來源:轉載
供稿:網友

本文是利用C# 開發截圖軟件的小例子,以供學習分享使用。

思路:

  1. 截取屏幕圖片。
  2. 獲取要截取的范圍,即左上角,右下角坐標
  3. 填充到PictureBox中。
  4. 筆觸功能,熒光筆,矩形,橡皮擦,復制,保存功能

涉及的知識點:

  • MenuStrip:為窗體提供菜單系統。以ToolStripMenuItem為菜單子選項
  • ToolStrip:為 Windows 工具欄對象提供容器。以ToolStripButton【表示包含文本和圖像的可選】為工具欄子元素
  • PictureBox:表示用于顯示圖像的 Windows 圖片框控件。不過本文對此空間進行了重寫
  • Screen:可用于獲取工作屏幕區域
  • Graphics:封裝一個 GDI+ 繪圖圖面。此類不能被繼承。此類的CopyFromScreen方法用于獲取屏幕圖像
  • 鼠標事件:包括MouseDown,MouseMove,MouseUp事件,通過MouseEventArgs中的Location獲取鼠標的位置。
  • Clipboard: 提供將數據置于系統剪貼板中以及從中檢索數據的方法。此類不能被繼承。
  • Cursor:設置鼠標的顯示的光標的樣式。
  • OnPaint:重繪事件,當控件刷新時響應此事件。
  •

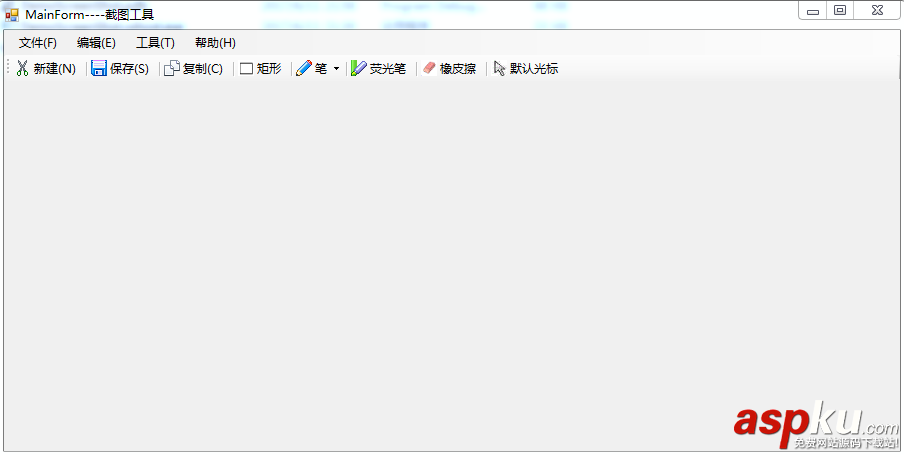

效果圖如下【主要實現了截圖,保存,復制,畫矩形,筆觸,熒光筆,橡皮擦等功能】:

c#,截圖軟件

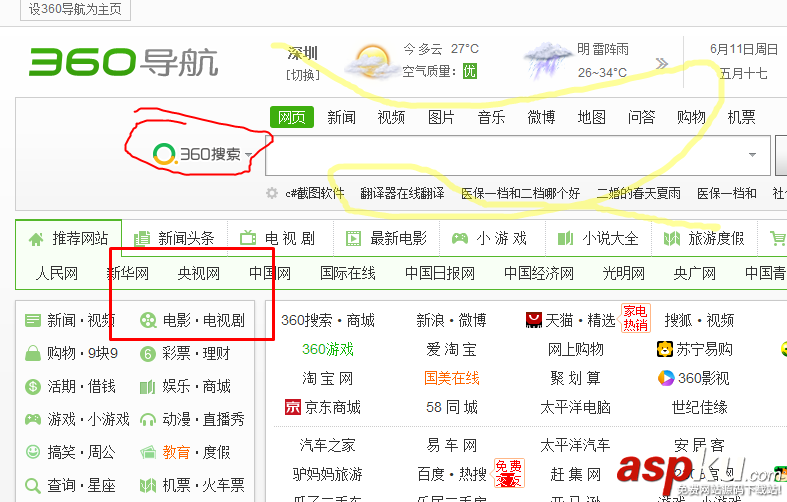

保存后圖片如下:

c#,截圖軟件

-------------------------------------------------------------------------------------------------------------------------------

核心代碼如下:

截取屏幕圖像:

public Bitmap GetScreen() {  //獲取整個屏幕圖像,不包括任務欄  Rectangle ScreenArea = Screen.GetWorkingArea(this);  Bitmap bmp = new Bitmap(ScreenArea.Width, ScreenArea.Height);  using (Graphics g = Graphics.FromImage(bmp))  {  g.CopyFromScreen(0, 0, 0, 0, new Size(ScreenArea.Width,ScreenArea.Height));  }  return bmp; }

繪制圖形功能:

#region 繪制功能 protected override void OnPaint(PaintEventArgs pe) {  base.OnPaint(pe);  Graphics g = pe.Graphics;  DrawHistory(g);  //繪制當前線  if (startDraw && this.curLine.PointList != null && this.curLine.PointList.Count > 0)  {  DrawLine(g,this.curLine);  }  if (startDraw && this.curRect.Start != null && this.curRect.End != null && this.curRect.Start != this.curRect.End) {  DrawRectangle(g, this.curRect);  } } public void DrawHistory(Graphics g) {  //繪制線歷史記錄  if (LineHistory != null)  {  foreach (HLine lh in LineHistory)  {   if (lh.PointList.Count > 10)   {   DrawLine(g, lh);   }  }  }  //繪制矩形歷史記錄  if (RectHistory != null)  {  foreach (HRectangle lh in RectHistory)  {   if (lh.Start!=null&& lh.End!=null && lh.Start!=lh.End)   {   DrawRectangle(g, lh);   }  }  } } /// <summary> /// 繪制線 /// </summary> /// <param name="g"></param> /// <param name="line"></param> private void DrawLine(Graphics g,HLine line) {  g.SmoothingMode = SmoothingMode.AntiAlias;  using (Pen p = new Pen(line.LineColor, line.LineWidth))  {  //設置起止點線帽   p.StartCap = LineCap.Round;  p.EndCap = LineCap.Round;  //設置連續兩段的聯接樣式   p.LineJoin = LineJoin.Round;  g.DrawCurve(p, line.PointList.ToArray()); //畫平滑曲線   } } /// <summary> /// 繪制矩形 /// </summary> /// <param name="g"></param> /// <param name="rect"></param> private void DrawRectangle(Graphics g, HRectangle rect) {  g.SmoothingMode = SmoothingMode.AntiAlias;  using (Pen p = new Pen(rect.LineColor, rect.LineWidth))  {  //設置起止點線帽   p.StartCap = LineCap.Round;  p.EndCap = LineCap.Round;  //設置連續兩段的聯接樣式   p.LineJoin = LineJoin.Round;  g.DrawRectangle(p, rect.Start.X, rect.Start.Y, rect.End.X - rect.Start.X, rect.End.Y - rect.Start.Y); //畫平滑曲線   } } public void Earser(Point p0) {  for (int i = lineHistory.Count - 1; i >= 0; i--)  {  HLine line = lineHistory[i];  bool flag = false;  foreach (Point p1 in line.PointList)  {   double distance = GetDistance(p0, p1);   if (Math.Abs(distance) < 6)   {   //需要?jiǎng)h除   flag = true;   break;   }  }  if (flag)  {   lineHistory.RemoveAt(i);  }  }  //擦除矩形  for (int i = rectHistory.Count - 1; i >= 0; i--)  {  HRectangle rect = rectHistory[i];    if (p0.X>rect.Start.X && p0.X<rect.End.X && p0.Y > rect.Start.Y && p0.Y < rect.End.Y) {      rectHistory.RemoveAt(i);  }  } } /// <summary> /// 獲取兩點之間的距離 /// </summary> /// <param name="p0"></param> /// <param name="p1"></param> /// <returns></returns> private double GetDistance(Point p0, Point p1) {  return Math.Sqrt(Math.Pow((p0.X - p1.X), 2) + Math.Pow((p0.Y - p1.Y), 2)); } #endregion

以下是源碼功能連接,需要的朋友可以自行下載。

源碼鏈接

以上所述是小編給大家介紹的C# 實現截圖軟件功能實例代碼,希望對大家有所幫助,如果大家有任何疑問請給我留言,小編會及時回復大家的。在此也非常感謝大家對VEVB武林網網站的支持!
